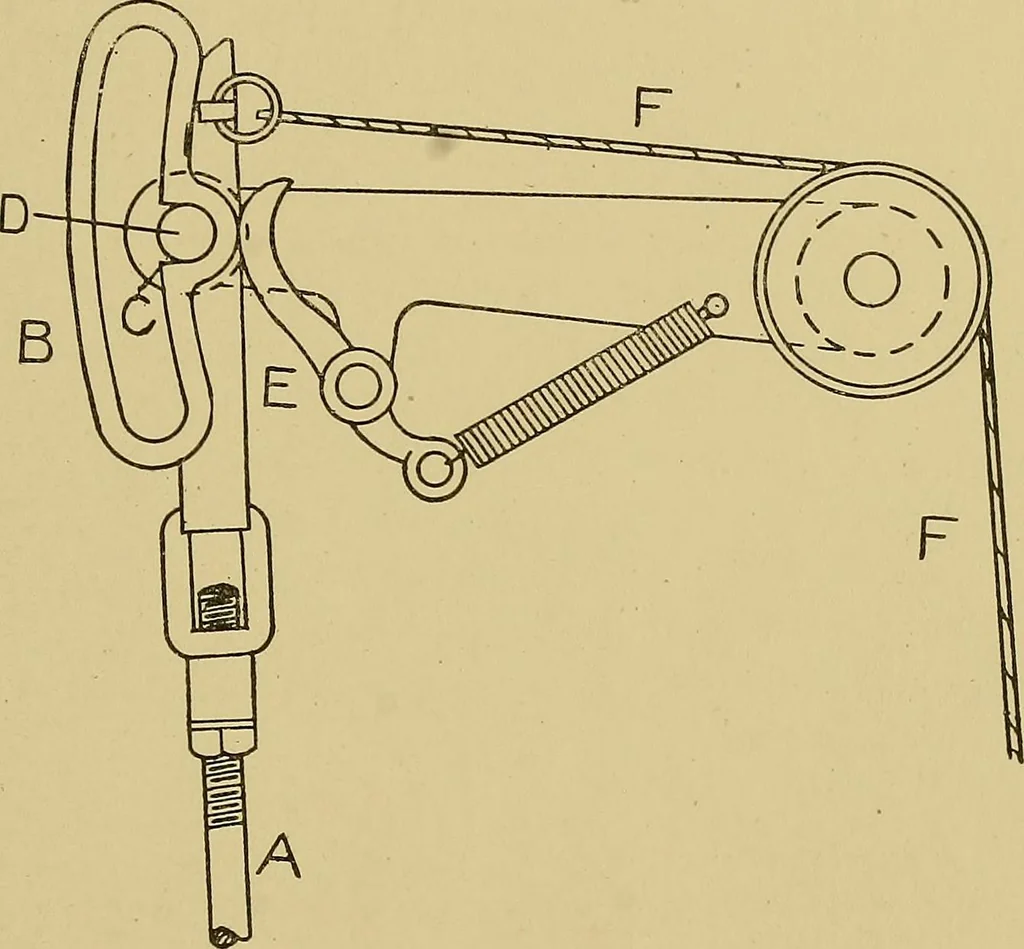

ING 169 good example on which to work. The main facts to be borne inmind are that the single lever will raise or lower one box and thecompound lever will raise or lower two boxes. A riser placed on the chain to actuate the single lever willlift the boxes from first to second; a riser placed on the… … Fig. 111. Disconnecting Device. place, build as follows: To return from fourth to second ariser under the single lever; fourth to first, a-blank bar; third tosecond a riser under the single lever; second to first, a blank bar,fourth to third, a riser under the compound. The boxes are in theregular…
