The gasoline engine on the farm; a practical, comprehensive treatise on the construction, repair, management and use of this great farm power as applied to all farm machinery and farmer's work indoors and out .. (1913)
Putnam, Xenophon Whiting, 1867- · New York, The Norman W. Henley Pub. Co. · leaf 118

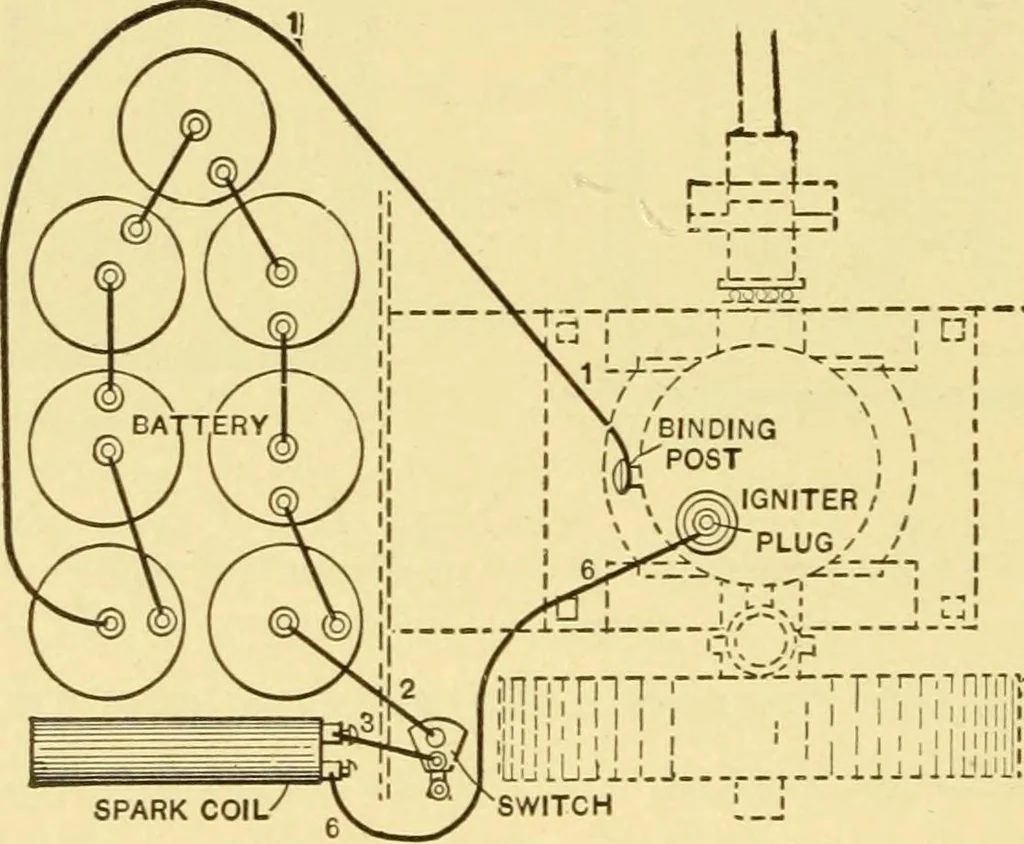

straw-board. A binding post at the edge of the cup and ii6 The Gasoline Engine on the Farm the top end of the carbon form the two poles of thecell. 124. Connecting the Cells in a Battery.—Unscrewthe cap from binding post of a carbon rod and wrapa short piece of insulated copper wire, with the… … SPARK COIL^ Fig. 32.—Showing Dry Cell Battery Wired in Series. to the zinc cup of the next cell. Connect all the cellsin the same way, always joining zinc to carbon. Thisis called connecting in series, and the whole number ofcells connected form the battery. It is not correct tospeak of a single…
Internal combustion engines · Farm engines
