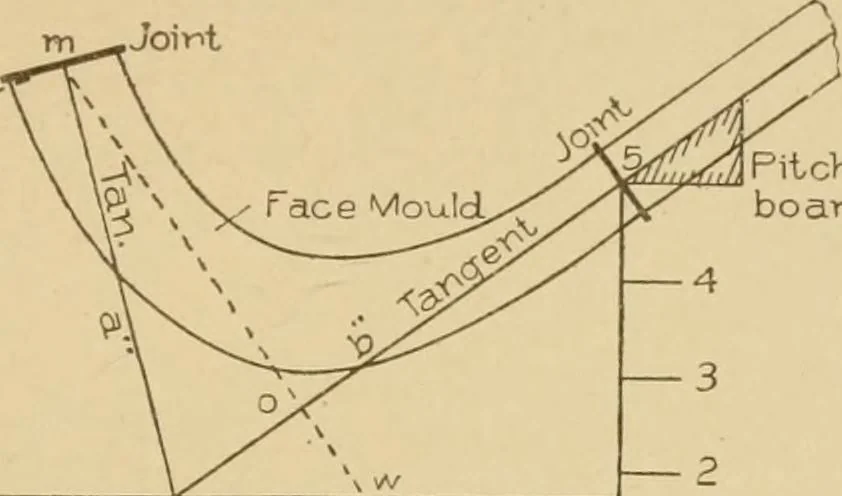

Fig. 100. Plan of Curved Steps and Stringer atBottom of Stair. 206 STAIR-BUILDING 55 .Joint Level Tangent Floor Line b Tangent PiicVi-board … perpendicular line. Now place the dividers on 4; extend to k; turnover to cut the perpendicular in h; connect this point with 4, and theangle shown at 4 will be the angle required to square the joints of thewreath as showni at h and 5, where the joint at 5 is shown drawnsquare to the line 4—5, and…
