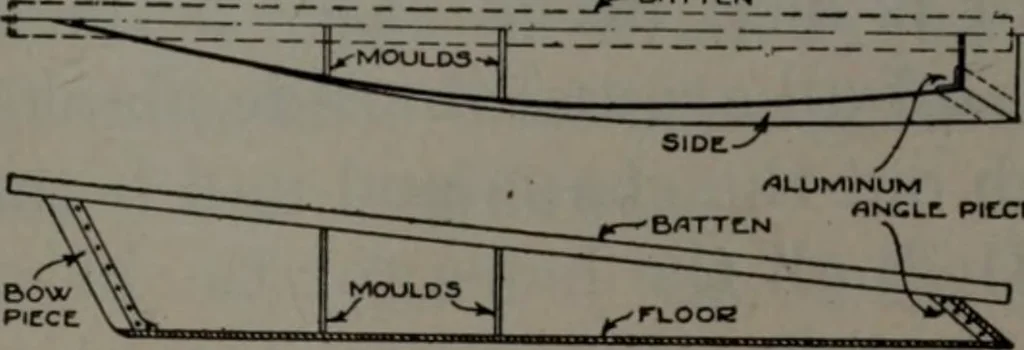

i oakfor knees and a piece of oak about 1% inches thick for A Sharpie-Ti/pe Model Boat 269 the bow. The sides are marked out and shaped fromthe drawing; both exactly alike. The bow piece isplaned into a triangular section and rebated to take thefore end of the side planks. The stern piece is made … Fig. 180—How the hull of the boat is assembled of l^ inch oak and beveled to fit into the sides. In theactual building, the sides are secured to the bow pieceby brass screws (No. 1, i^-inch Avood screws) and thensprung out and the molds fitted; the transom being
