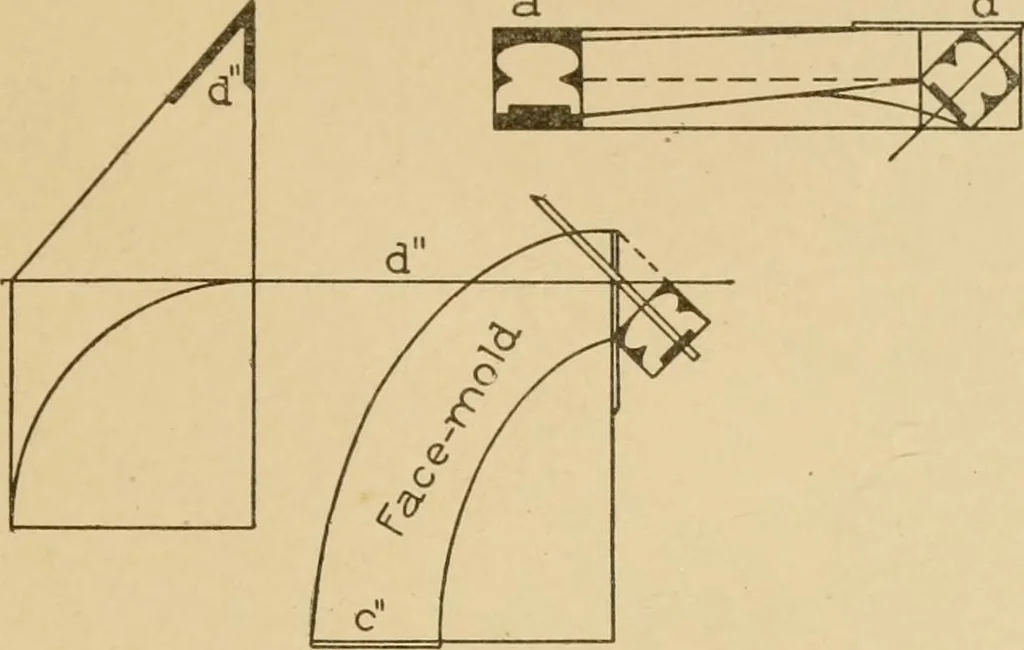

l. curve of the plan in full size. Fix point 3 at a height equal to 3risers from the floor line; at this point place the pitch-board of theflight to determine the pitch over the curve as shown from 3 throughb to the floor line. From the newel, draw a line to w, square tothe floor line; and from v\… … Fig. 109. Face-Mould imd Bevel for Wreath, Bottom Tangent Level, Top One Inclined. b; and the angle between the two hnes a and h will give each line its true direction as required on the face-mould for squaring the joints of the wreath,a d / as shown at m to connectsquare withthe newel, andat 3 to…
