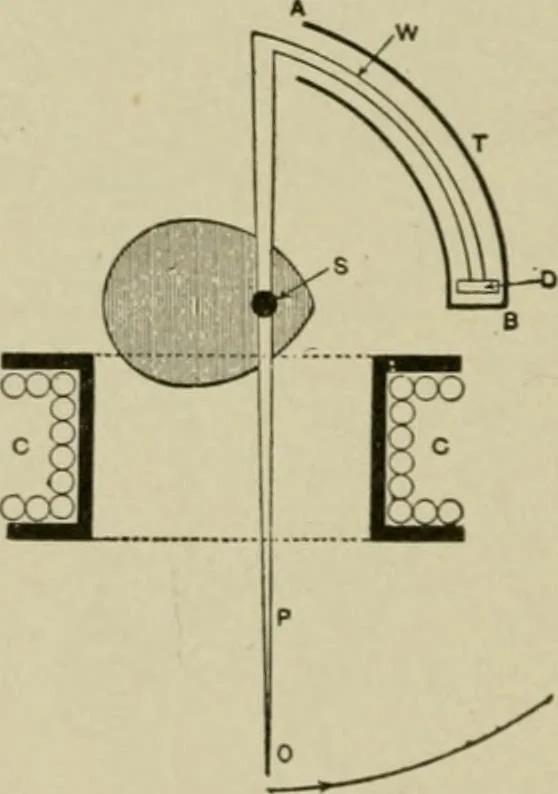

be classified as 1. Plunger; 2. Inclined coil; 3. Magnetic vane. 1,782 HAWKINS ELECTRICITY Qiies. Describe the plunger type. Ans. This type of ammeter consists of a series coil and asoft iron plunger forming a solenoid, the plunger is so suspendedthat the magnetic pull due to the current flowing… … Fig. 2,497.—One form of plunger instrument as made by Siemens. // has gravity control,is dead beat and is shielded from external magnetic influence. The moving system con-sists of a thin soft iron pear shaped plate I pivoted on a horizontal spindle S running injewelled centers. To this spindle S is…
