Beale, Oscar James, Brown & Sharpe Manufacturing Company (Providence, R.I.) · Providence, R.I. : Brown & Sharpe Mfg. Co. · leaf 60

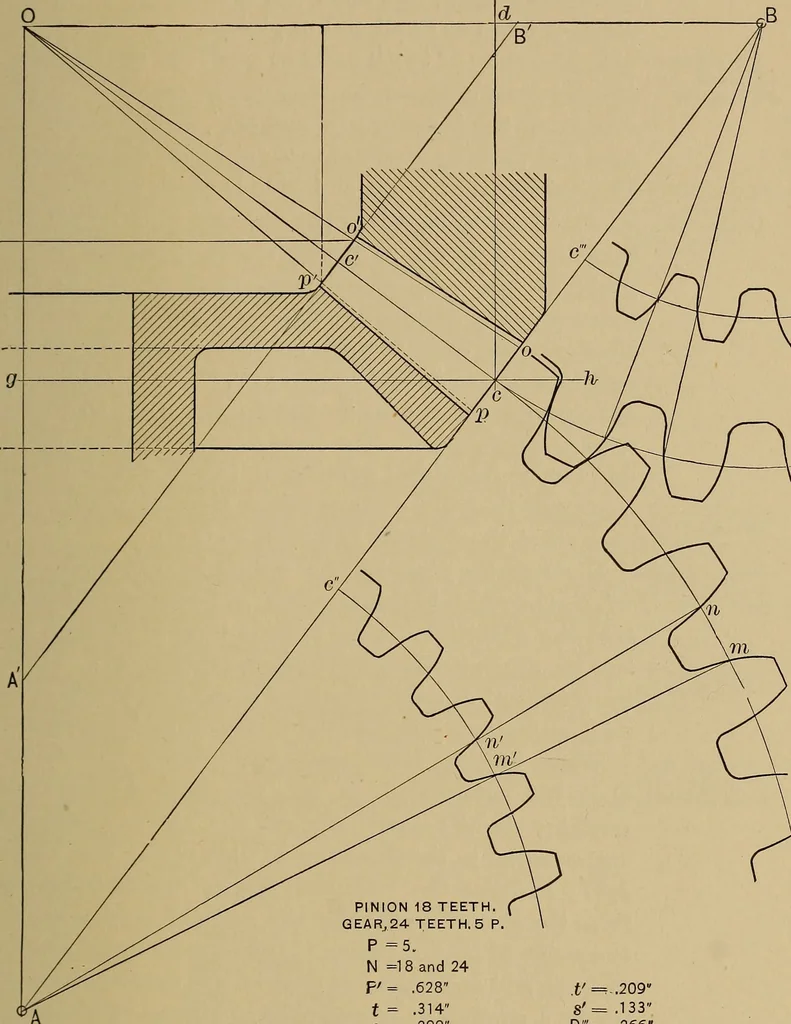

ne,and diaw outlines of teeth as in previous chapters.That is, for single-curve teeth draw a semicircle uponradius Ac and proceed as in Chapter III. For all bevelgears cut with a rotary disk-cutter (a common gear-cutter), single-curve teeth are preferable. Double-curve teeth can be drawn from… … PINION 18 TEETH.GEAR,24- TEETH. 5 P.P =5.N =18 and 24 F = .628 .t==-.209 t = .314 S=.133 s = .200 D= .266 D= .400 s+f = .165 ^ + f = .231 D-+/ =.298 +/ = .431 BEVEL GEARS, FORM AND SIZE OF TEETH. 42 BROWN & SHARPE MFG. CO. 5. Upon arc of radius A c we get shape of teeth atsmall end of gear, and…
Gearing
