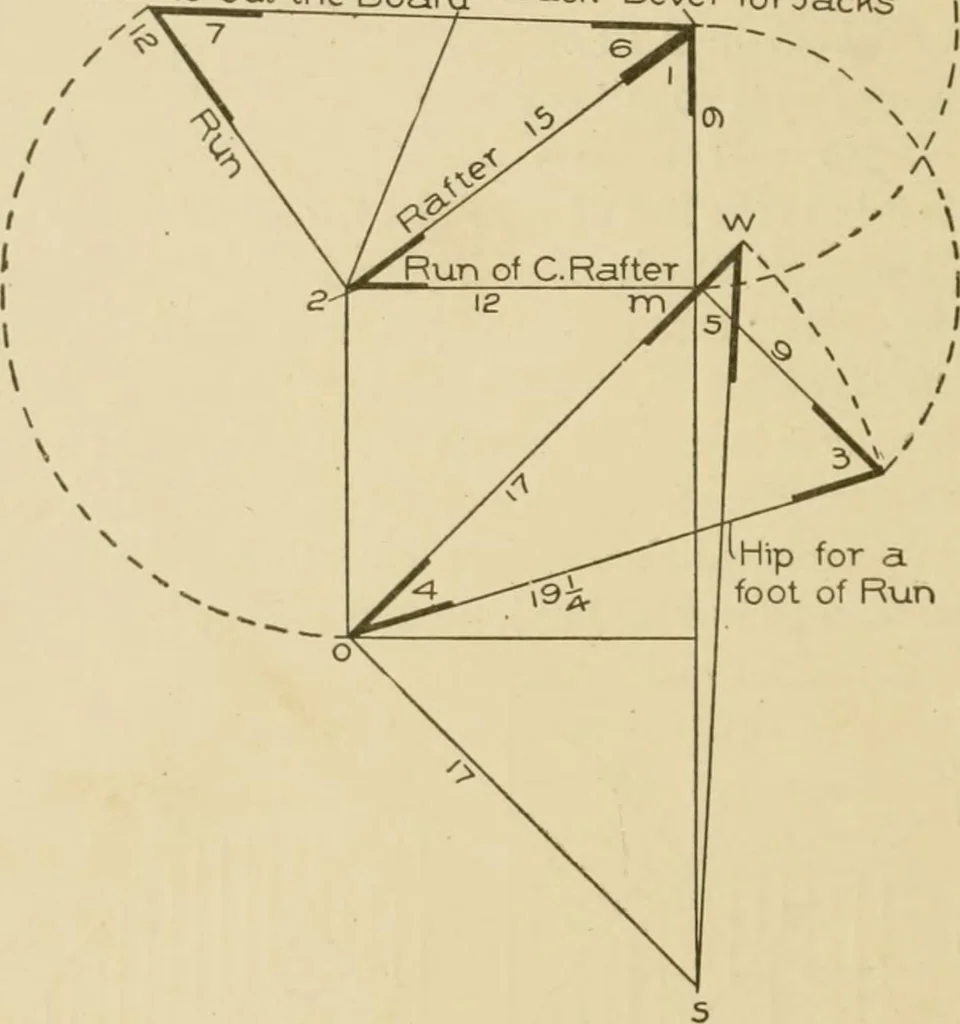

Miter Bevel for Boards Bevel to_ cut the Bo^rd Back B#vel for Jacks … Fig. 30. Method of Finding Bevels for All Timbers in Roofs of Equal Pitch. IS inches between centers in a roof having a pitch of 9 inches to thefoot of run. When jacks are placed between hips and valleys as shown at1, 2, 3, 4, etc., in Fig. 14, a better method of treatment is shown inFig. 29, where…
