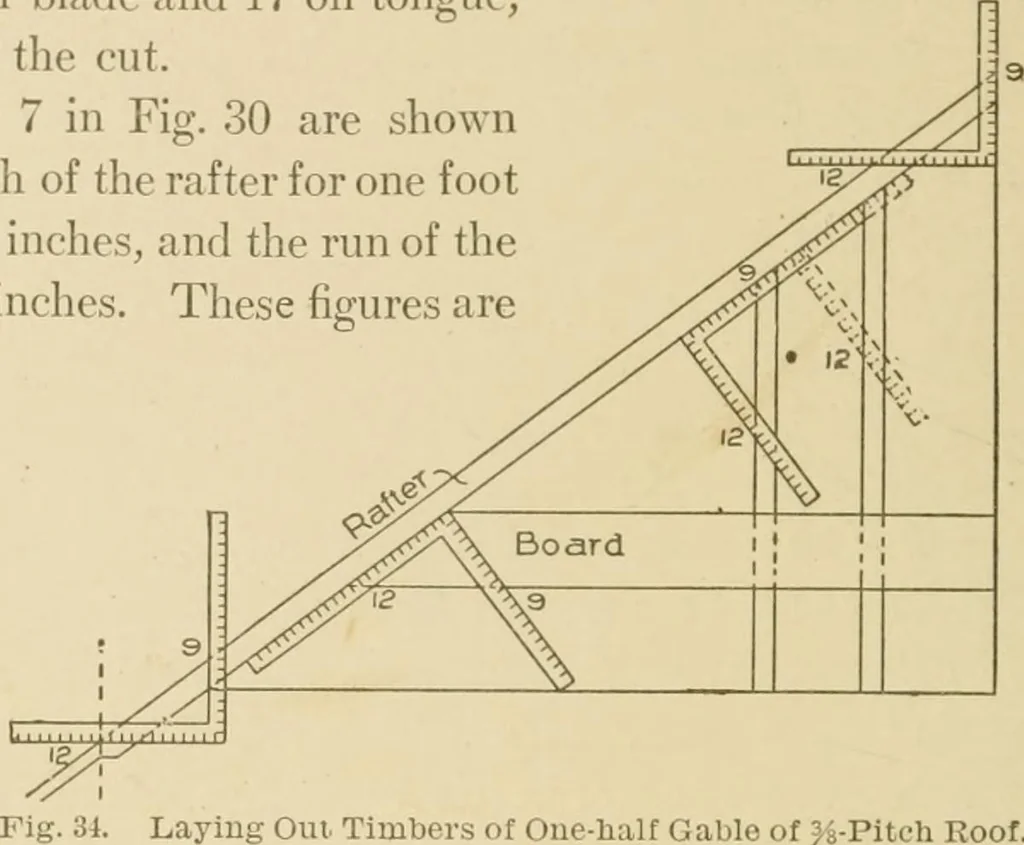

Determining Miter Cut for Roof-Board. the blade for the heel cut, the plumb and heel cuts are found. Bevel5, which is to fit the hip or valley against the ridge when not backed,is shown from o w, the length of the hip for one foot of run, which is19| inches, and from o s, which always in roofs of… … Laying Out Timbers of One-half Gable of %-Pitch Roof. These figures, therefore, taken on the square, 19^ on the blade,and 17 on the tongue, will give the bevel by marking along the bladeas shown in Fig. 31, where the square is shown applied to the hiptimber with 19^ on blade and 17 on tongue,the…
