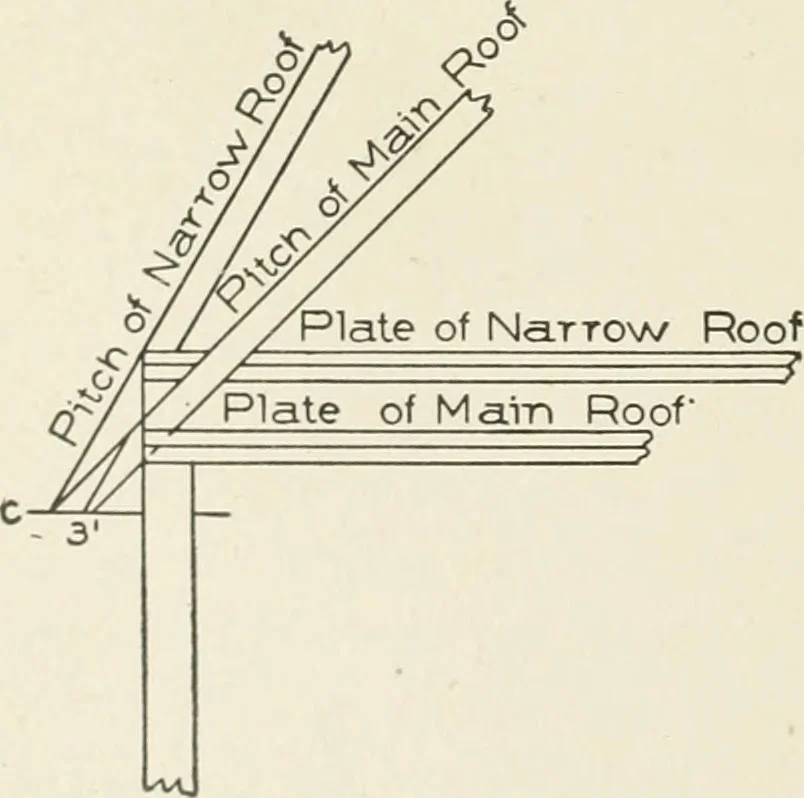

an lines; and those above, the elevation. From z, o.o, in the plan, draw lines to x y,as shown from o to m and from zto m; from m and m, draw the ele-vation lines to the apex o, inter-secting the line of the roof in dand c. From d and c, drawthe lines d v and c a parallelto x y; from c, drop a line… … Fig. 41. Showing Relative Position ofPlates in Roof with Two Un-equal Pitches. to the apex o; and connect c n. 368 THE STEEL SQUARE 27 the two hips shown at o o in Fig. 3G, both being equal hips intersect-ing the roof at an equal distance from the plate. The bevel at wis thetop bevel, and the bevel…
