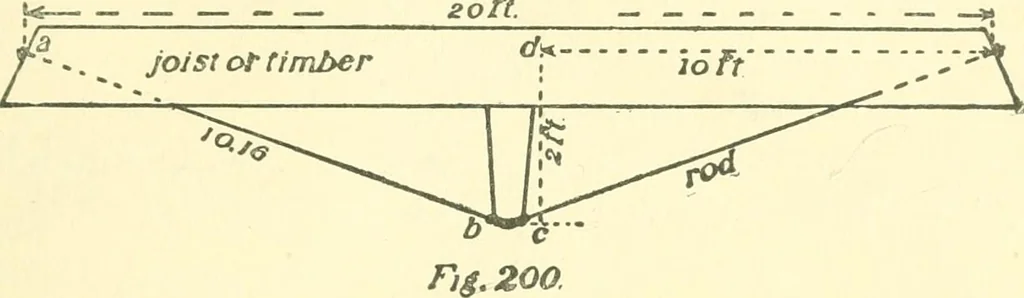

hen the weight is con-centrated at I and 2 : The weight by one-third the lengthof the chord or c b divided by the length oi a b equalsthe strain on the chord or the compression of the top piece ; FOR CARPENTERS AND MECHANICS. 135 the weight equals the strain on the rods ; the weight bythe length of… … square root of the product will be the diameter of the roaallowing 12,000 pounds per square inch in the rod. When two rods carry a given weight, take half theweight and proceed as above. 181—To Find the Strain on the Rods of a Hog Chain Girder.—Rule: Three-tenths of the distributedweight by the…
