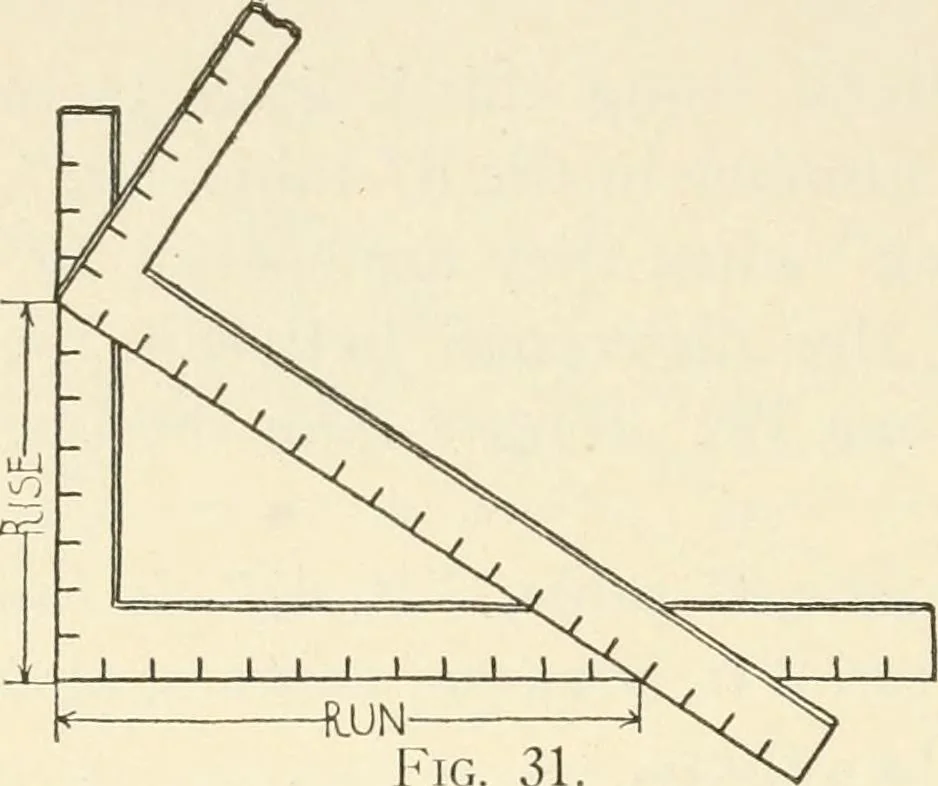

visions as feet and thefractional divisions asinches, one can readilyscale the length of a rafterby placing another squareas shown in Fig. 31 andreading the graduationsu])on it as feet and inches. A rule graduated to twelfths will serve in place of this second square. 29. Plumb and Level.—Fig. 32… … Fig. 31. Obtaining Rafter Length BY Scale Method.
