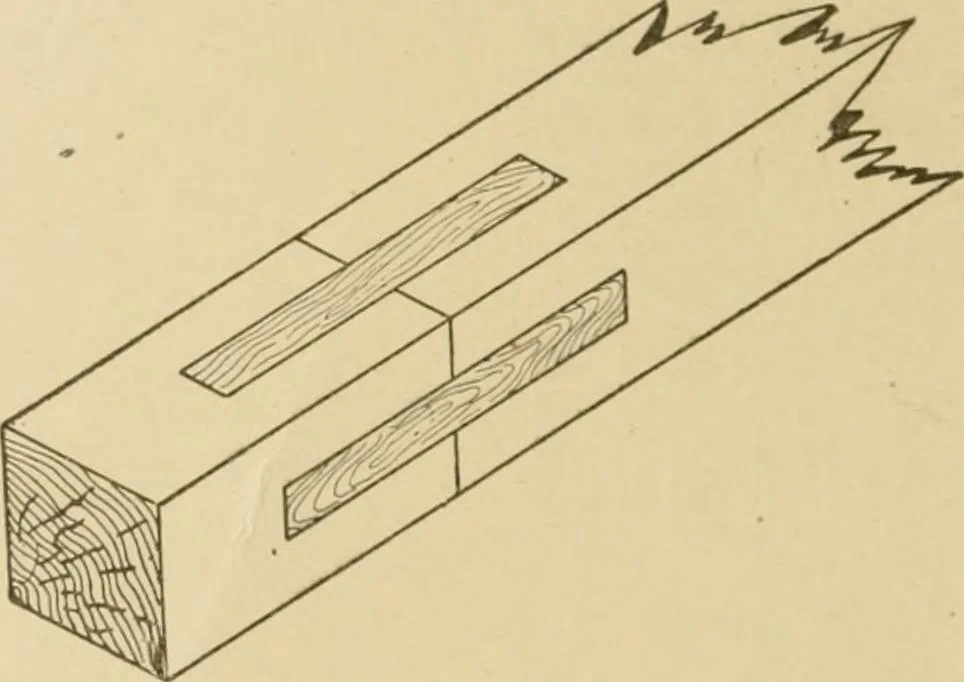

1.These dowels may be setinto the sides of the tim-bers to be spliced, so thatthey do not project at allbeyond the faces of thesepieces and a very neat jobmay thus be obtained. It is but a step to pass from this simple splice to the halved splice shown in Fig. 42. It will be noticed that it is much… … Fig. 41. Splice Using Dowels.
