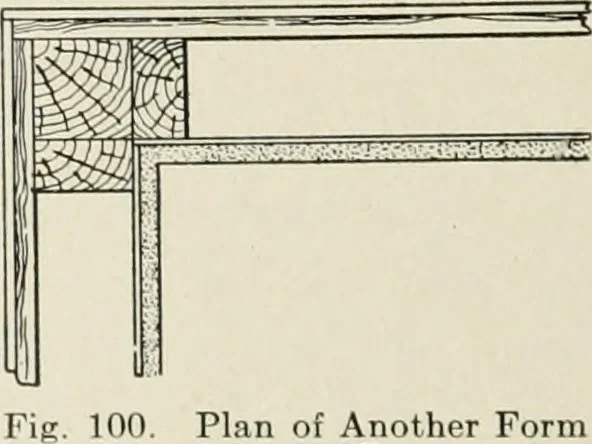

Plan of Corner PostDetails … 100. Plan of Another Formof Corner Post form a solid corner, and give a firm nailing for the lathing in bothwalls. This arrangement is shown in plan in Fig. 99, A is the cornerpost, /> the furring stud, C the plastering, and D the boarding andshingling on the outside. Sometimes a 4X4-inch piece…
