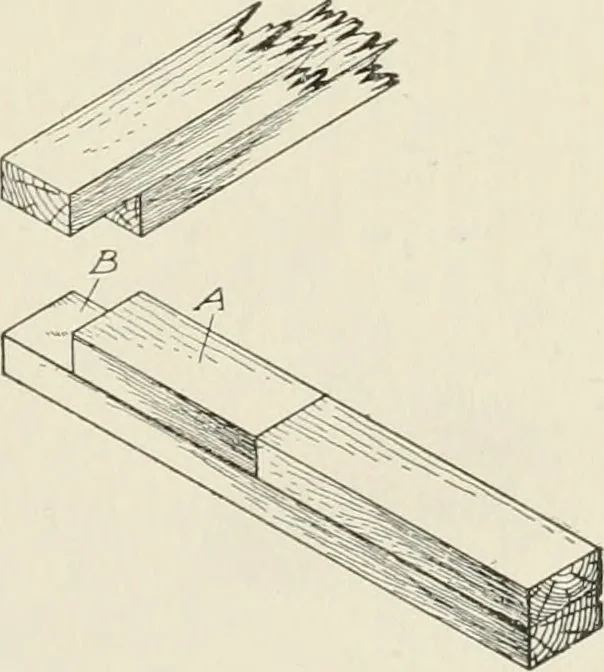

Fig. 107. Plate as Supportfor Attic Floor Fig. 108. Plates Used in BalloonFraming connected by a framed joint, usually halved together in the same wayas the sill. In the braced frame, a fairly heavy piece, usually a 4X6inch is used, although a 4 X 4 inch is probably sufficiently strong.In a balloon…
