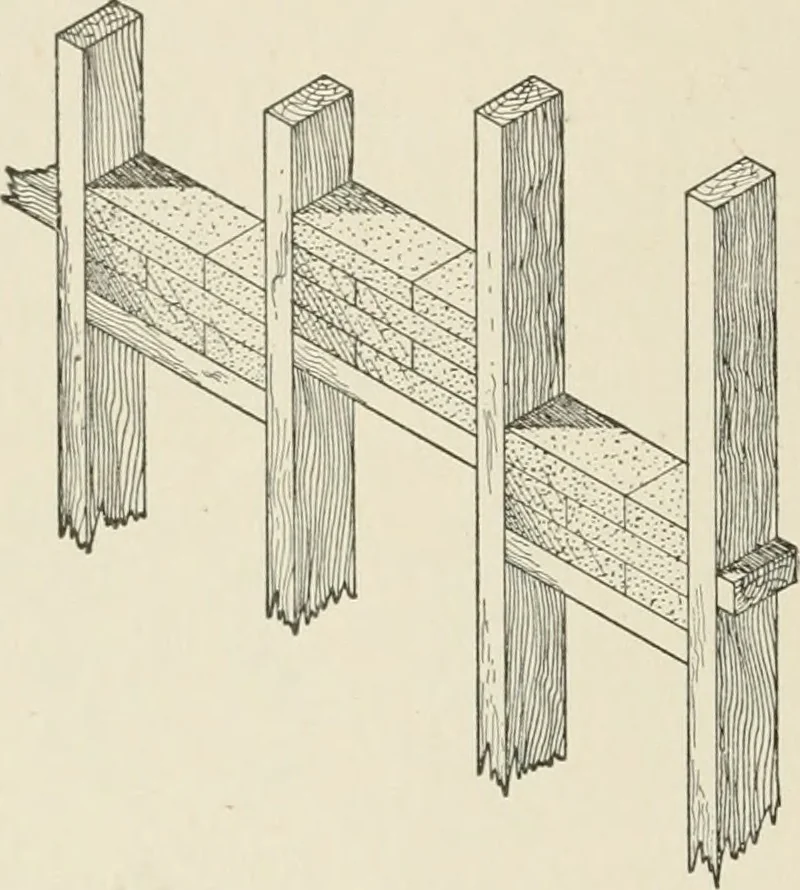

o good as in the casewhere the studs are placed edge-wise. If the partition is to sup-port a floor, one wall must bemade at least 4 inches thick tosupport it, and the studs in the other wall may then be placedflatwise if desired, and the floor supported entirely on the thickwall. The general… … Fig. 128. Horizontal Bridging withBricks Laid on Top 3B: pocket has been lined withsheathing. A piece of studding A,Fig. 130, should be cut in hori-zontally between each pair ofstuds B, 8 or 10 inches abovethe top of the door in order to keep the pocket true and square. Thepocket should be lined on…
