Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 131

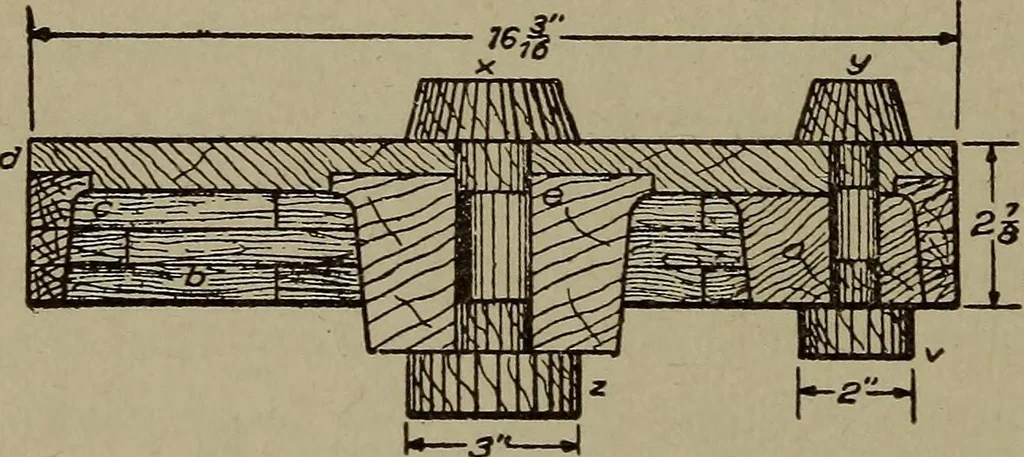

eend of the hub; 3^ inch will be sufficient to add for finish on theouter rim, making the diameter of the pattern 16f inches, and thethickness of the disk f inch. A sectional view of the pattern isshown in Fig. 195. . Disk. The disk or web for this pattern is to be made of sixsectors, Fig. 196. The… … Fig. 195. Section of Pattern for Disk Crank glue sized, and be grooved for a spline. The grain of the stock usedin these splines should be at right angles to the joint, as mentionedin the consideration of the hand-wheel pattern, Fig. 171. Bandsaw this web to a diameter \ inch greater than required…
Patternmaking
