Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 142

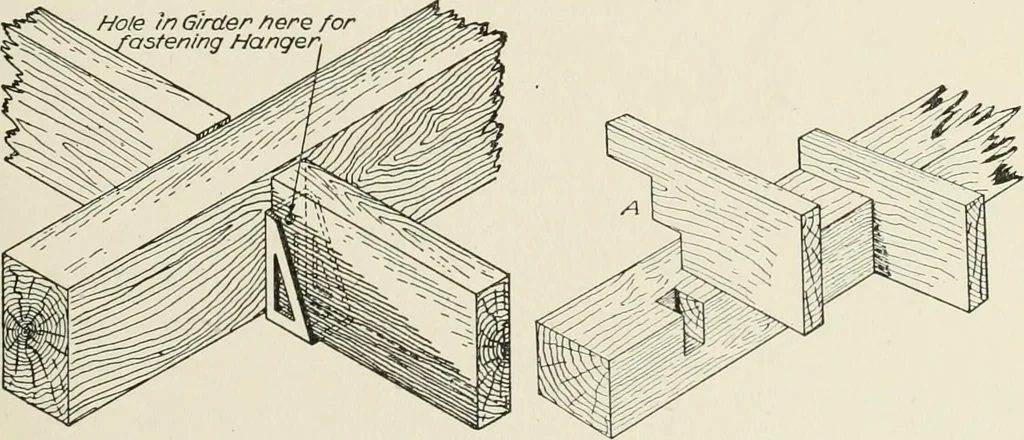

Fig. 135. Double Hanger with Joists in Place … Fig. 136. Patent Hanger with Joists in Place Fig. 137. Joists Framed into Sill If the joists are flush with the girder on top, and are framed into thesill in the ordinary way, as shown in Fig. 137, the girder can not beflush on top with the sill; while, on the other hand, if the girder isflush with…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
