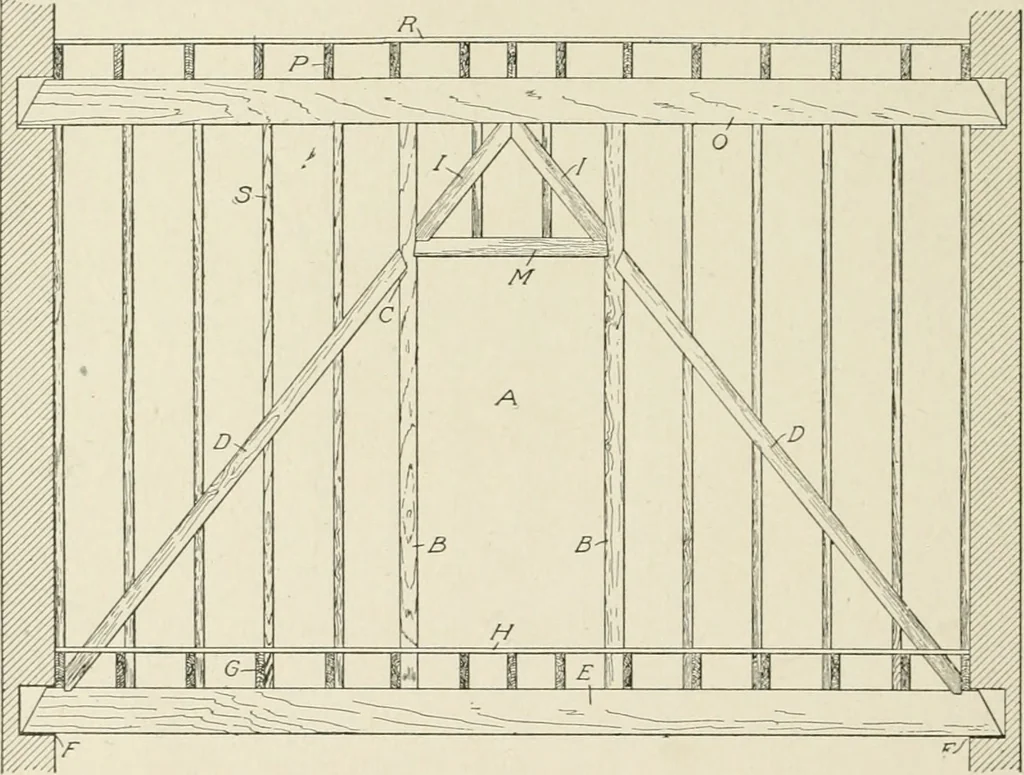

he frame of the partition is composed. In the figure, theopening is marked A, and the uprights at the sides of the openingare marked B B. In the upright pieces shoulders are formed, asshown at C in the figure, and into the shoulders are fitted braceswhich go diagonally across the partition to the… … Fig. 217. Trussed Partition Spanning Space between Two Brick Walls goes across from wall to wall and should run well into each wall asshown, so as to obtain a good bearing on the masonry and thereshould be a bearing plate or template of some kind under each endof it, as shown in the figure at the…
