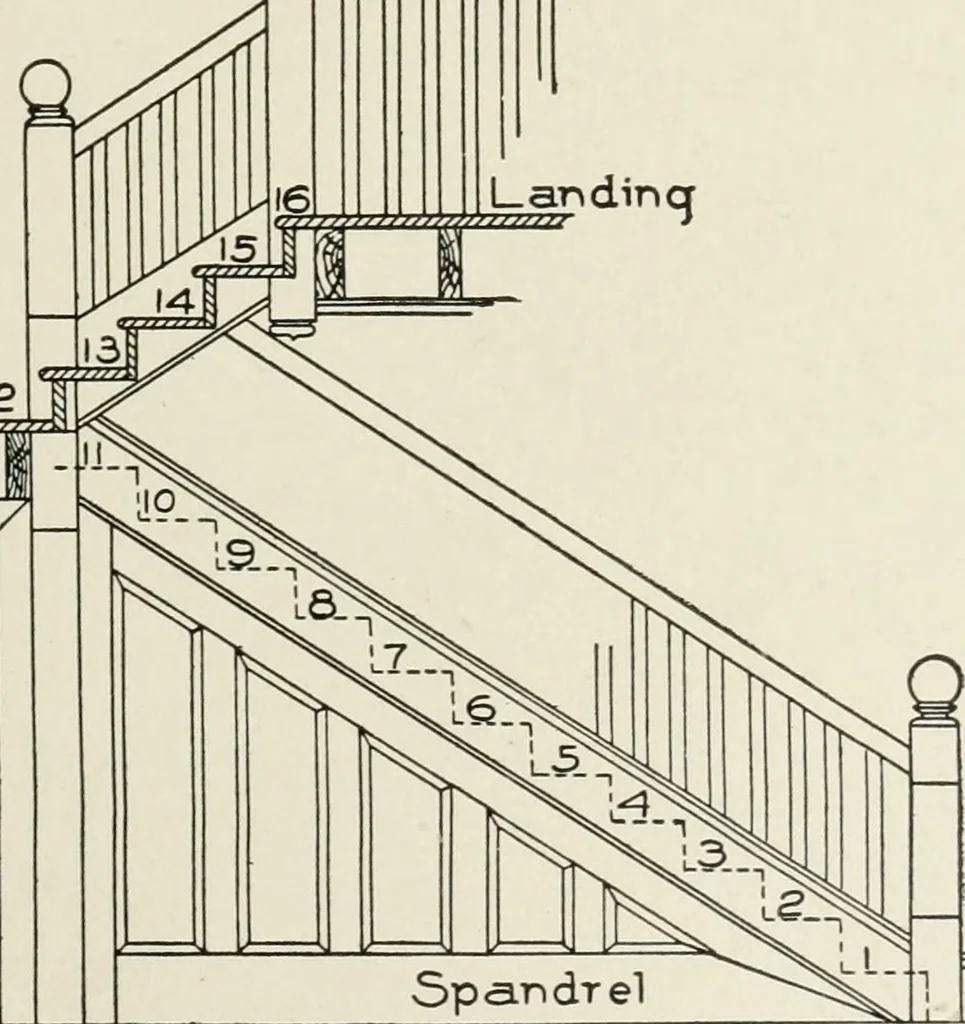

Fig. 34. Elevation and Plan of Dog-Legged Stairwith Three Winders and Six Flyers. 290 STAIR-BUILDING 27 12 Landing 10 13 14 15 Newel Wall Fig. 85. Plan of Platform Stair Returning on Itself. shown in Fig. 36 illustrates the manner in which the work is executed.The various parts are shown as… … Base Fig. 36. Elevation Showing Construction of Platform Stair of which Plan isGiven in Fig. 35. 291 28 STAIR-BUILDING Fig. 39 represents part of the bottom newel, showing the string,moulding on the outside, and cap. Fig. 40 is a section of the top string enlarged.Fig. 41 is the newel at the…
