Hicks' Builders' guide, comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders (1907)
Hicks, I. P. (Isaac Perry), b. 1856 · New York, David Williams company · leaf 29

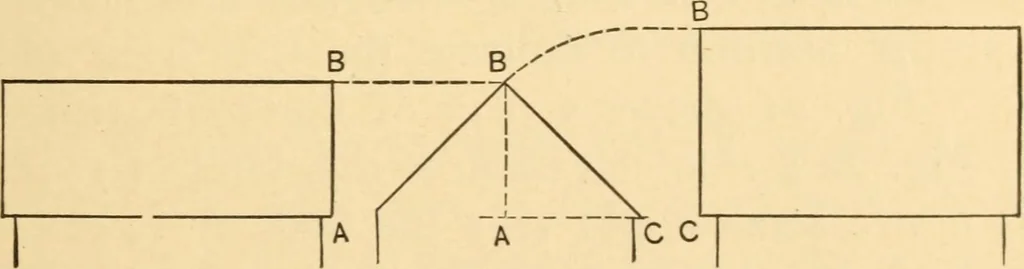

Fig. 17.—Flan of GableRoof. … IC CFigs. 18, 19 and 20.—Side and End Elevations of a Gable Roof. This line is only the perpendicular rise of the roof, asshown in the end elevation, Fig. 19, by the dotted line 28 THE BUILDERS GUIDE. A B. In Fig. 19, B C represents the length of rafterwhich, when shown in a perpendicular position,…
