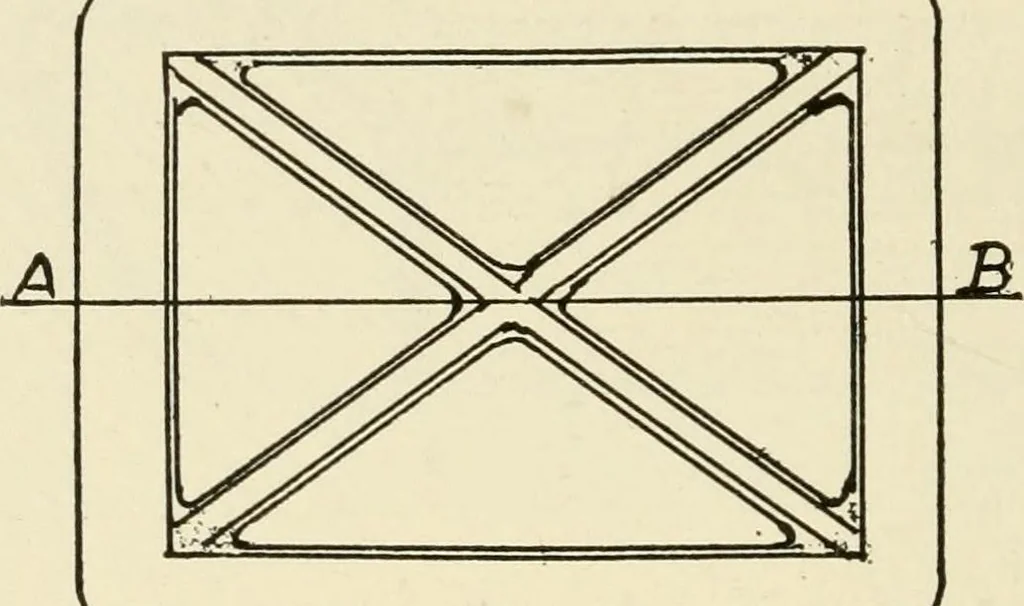

t E, Fig. 69; it is fitted into the first pieceas shown at B and C, Fig. 75. The core box to go with this pattern is shown atFig. 76. The circular parts A and B can, of course, bemade on the lathe in the same way as for the core boxshown at Fig. 70. CHAPTER XIV. MISCELI.ANEOUS EXAMPLES Fig. 78…
Patternmaking
