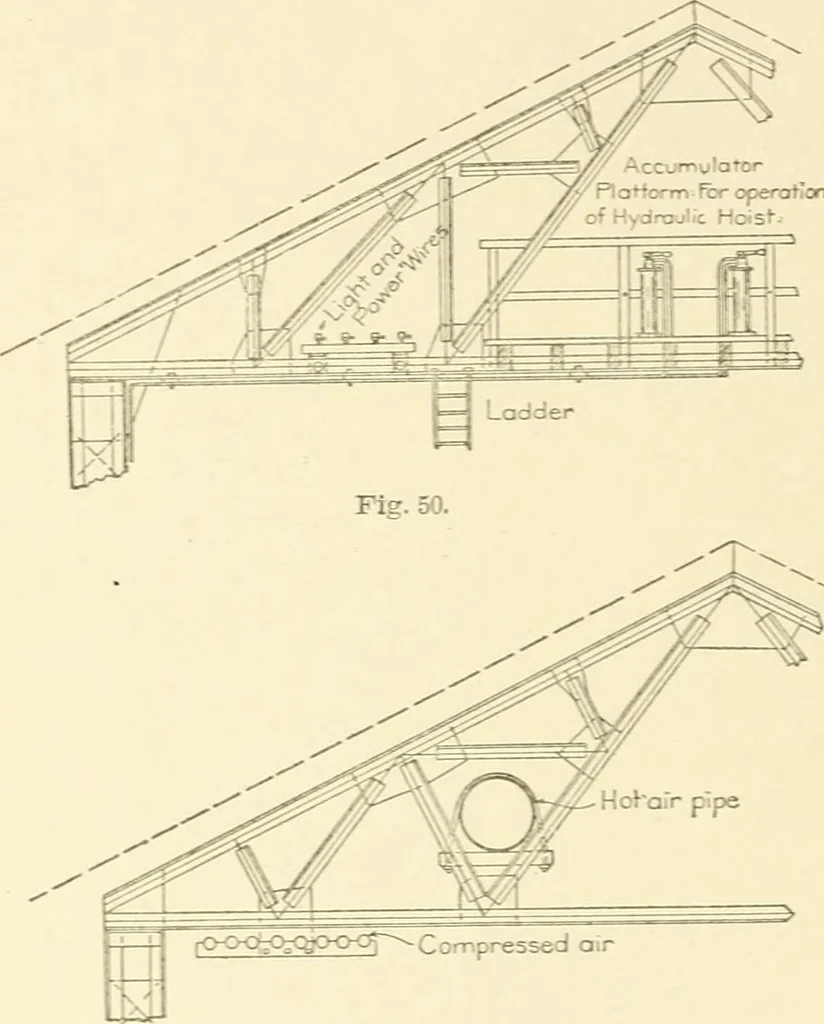

walls or on light columns inmasonry walls, pro%-ision is made for expansion due to temperature.For trusses up to 75 or SO feet, slotted holes are placed in the end-bearing, and the bearings rest directly upon another plate. Boltsare fastened to the masonry, and extend upward through the… … Fig. 51.Various Kinds of Susjtended Loads. 248 ROOF TRUSSES 35
