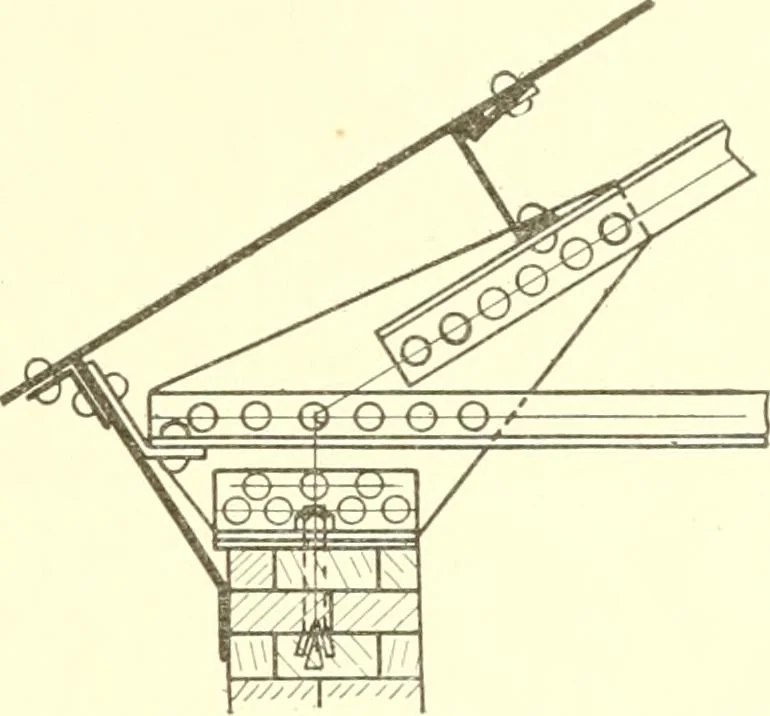

ion does not coincide with the intersection of the upperand lower chords than when it does coincide, an example will besolved. The stresses, the thickness of the connection plate, and thedistance of the point of application of the reaction from the inter-section of the chord, are as shown in Fig,… … Fig. 58. Data for Example on Page 37 Fig. 59. Eave Detail for Fig. 57 3 750 pounds, the value of a |-inch rivet in bearing in a J-inch platewhen the allowable unit bearing stress is 20 000 pounds per squareinch. If the point of application of the reaction coincides with theintersection of the two…
