Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 409

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 409

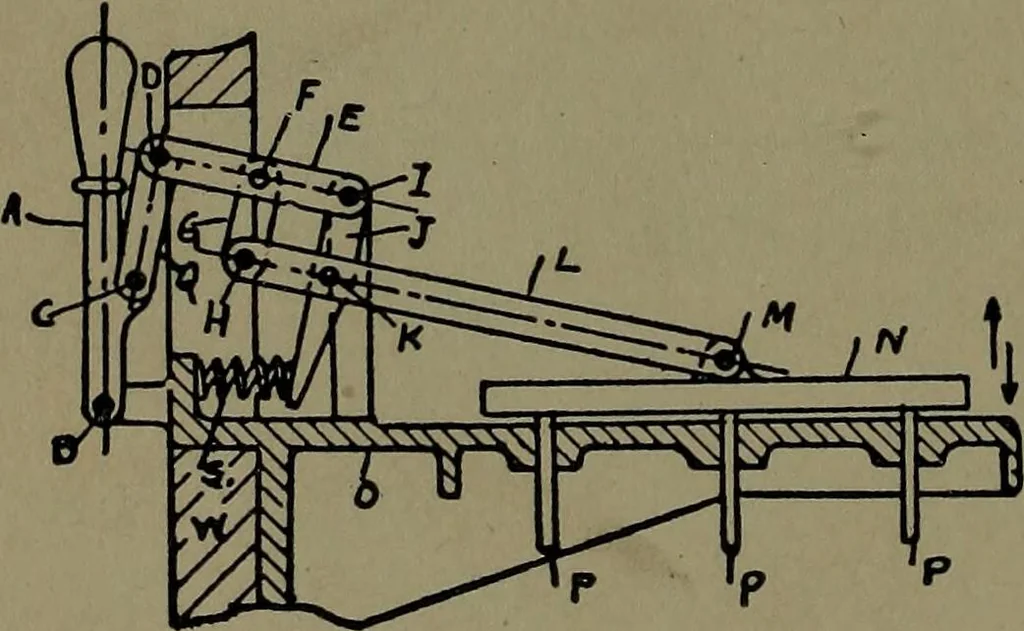

at C, is con-nected to lever E at D.Lever E, connected to linkQ at D, is pivoted to frameO at / and connected to linkG at F. Link G, connectedto lever E at F, is connectedto link L at H. Lever J,pivoted to frame O at /, is connected to link L at i^ and has aspring 5 on its opposite end. Link L,… … INDEX. Accumulator, hydraulic 153 Acetylene burners 393 Acetylene generators 892, 393 Air blast for moving coal 312 Air brake 178 Air compressing cylinders 174 Air compressor governor 175 Air compressors 170-174 Air cooling tower 116 Air dump, automatic 312 Air lift, compound Pohle 187 Air power…
