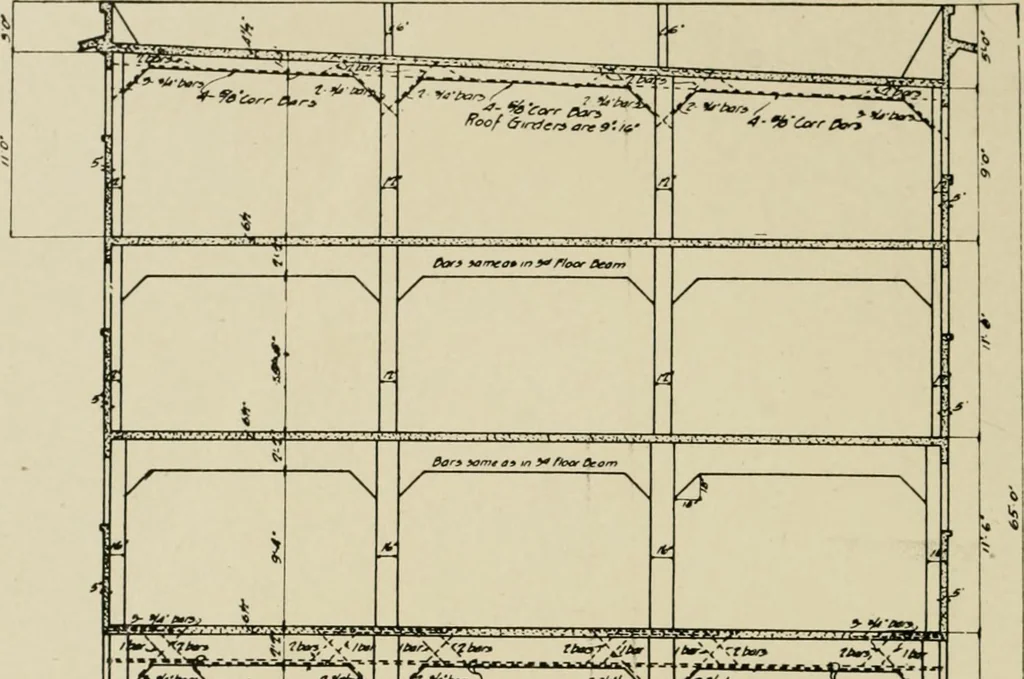

m shear at the ends, or 50,976pounds. Applying Equation 15, we have, since d — x ^ .85 d = 17inches V 50.796 V = . .. _—. = ^o w -ij = 249 pounds per square inch. As already discussed in previous cases, the ends of the beam mustbe reinforced against diagonal tension, since the above value of v… … ,*^*^^
