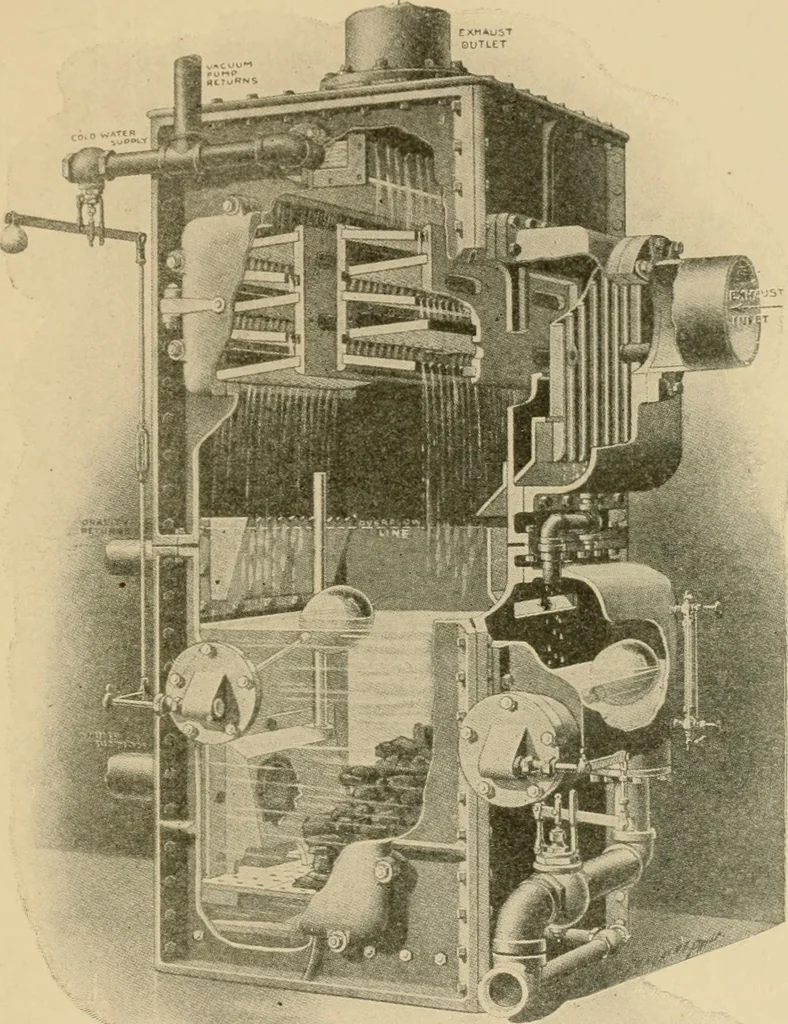

Fig. 36. Aspirating Regulatorin Flue. 166 STEAM AND HOT WATER FITTING 33 not enter the heater for the purpose of keeping up the proper tempera-ture of the feed-water. A type of heater with a coke fitter is shown in Fig. 37; while Figs.38 and 39 show two methods of making connections, the first when… … Fig. 37. Heater with Coke Fitter. the steam is allowed to pass through the heater, the latter when only aportion of the exhaust from the engines is allowed to enter. A very essential appliance used with exhaust-steam heating is thepressure-reducing valve, which makes good with live steam any de-…
