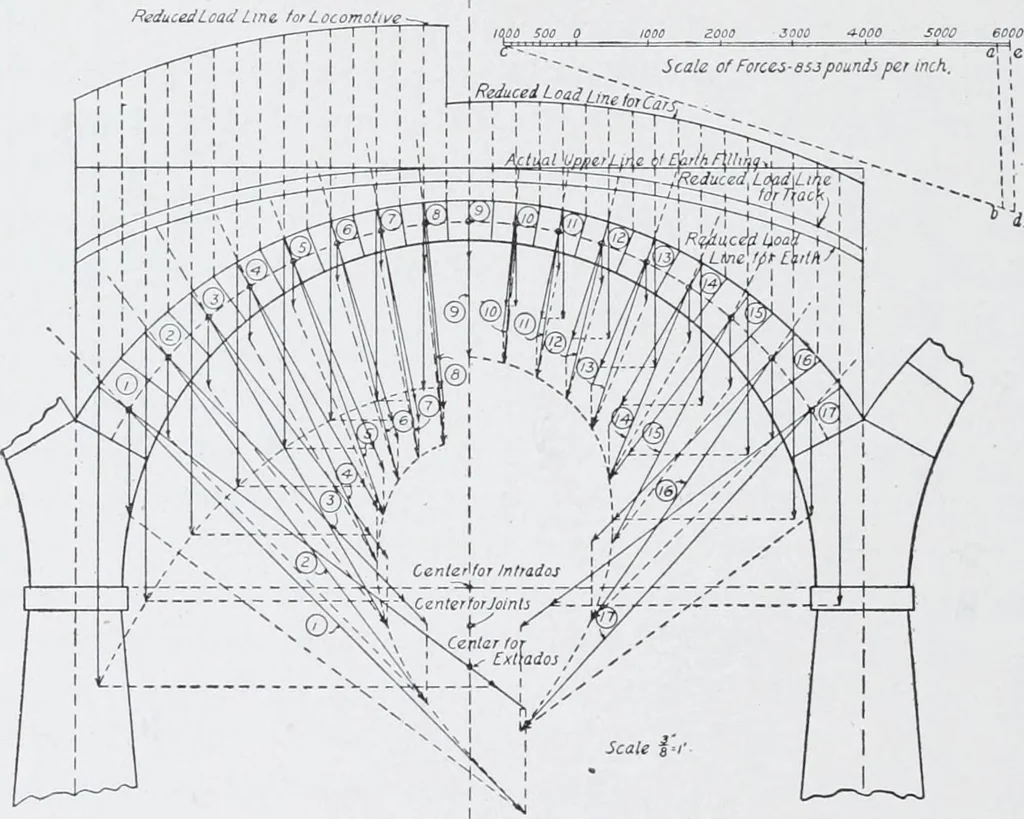

cinders which is 18 inches thick at the crown, and that it islevel. Drawing a horizontal line to represent the top of this earthfilling, we may divide this line into sections which are 2 feet wide,commencing at the vertical line through the center of the pier. Ex-tending this similarly to the other… … Fig. 236. Resultant Forces Acting on Voussoirs of a Full-Centei-ed Arch. sect the extrados, toward the center for joints, previously determined,we have the various joints of the voussoirs. Assuming, as in theprevious numerical problem that the cinder fill weighs 100 poundsper cubic foot, and that…
