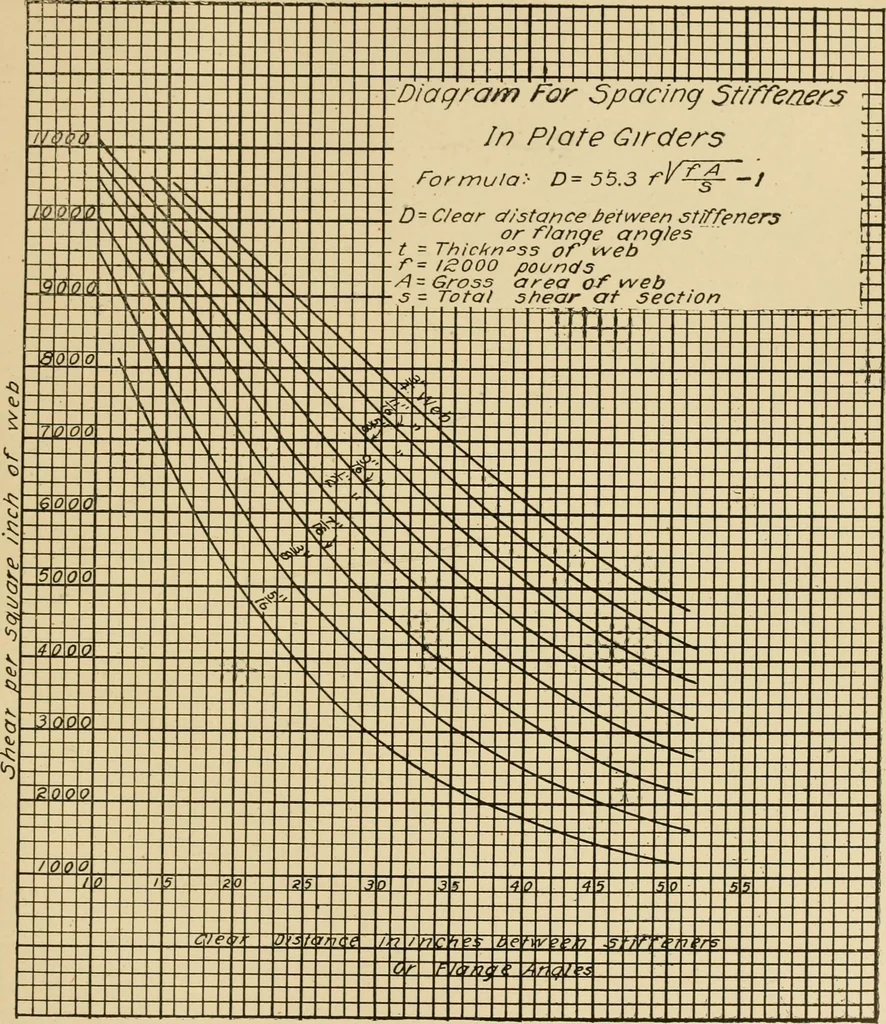

eb isthen 11.25 square inches, and the shear per square inch of gross area is8,900 pounds. Following up t\\? vertical side of the diagram until theline corresponding to 8,900 is found, then following this line until itmeets the line of a f-inch web, and then looking under this inter-section to the… … Fig. 246, 258 STEEI> rONSTRUCTIONr order not to recjuire stiffeners, the flange angles being 22 inches apartin the clear, this would be determined as follows: Follow up the vertical line corresponding to 22 inches as given atthe bottom of the diagram, until this line meets the line…
