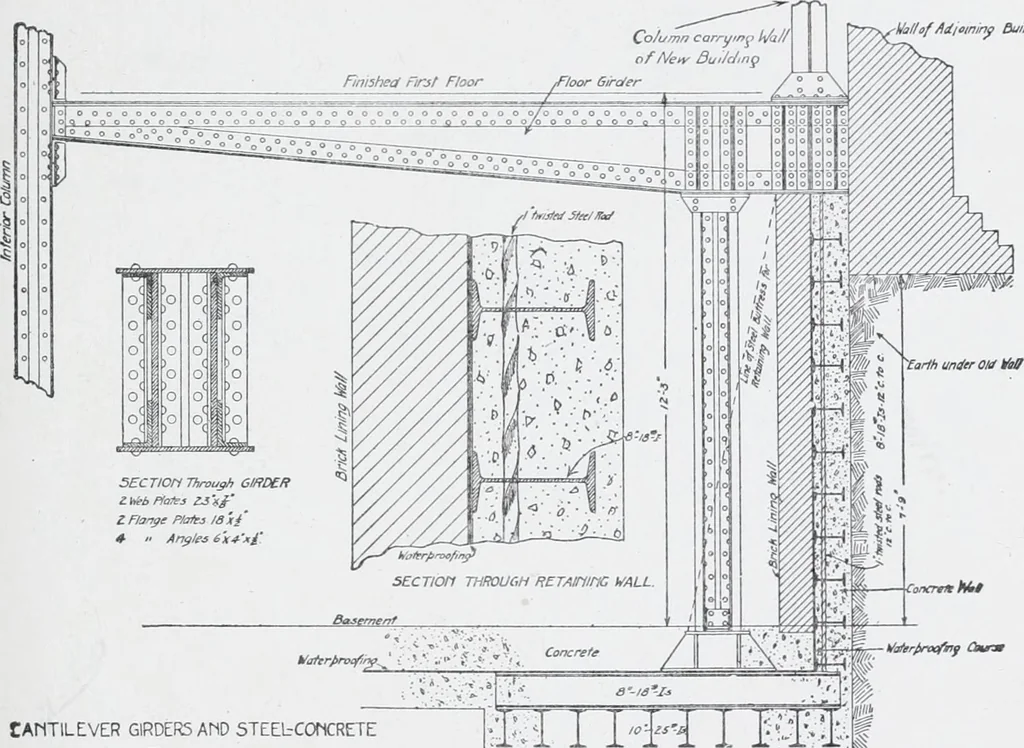

STEEL CONSTRUCTION 157 mined in a manner similar to that explained for combined footings.The connection of the cantilever at the interior column must bedesicrned to resist this upward tendency and in case the reactionfrom the dead-wall load is greater than the dead load carried bythis column the… … CAMTILEVER GIRDERS AMD STEEbCOMCRCTERETAlNlhG WALL. Mn¥iTm^ -i/afer/mcfiif Omt ll Fig. 156. Fig. 156 shows also a steel concrete retaining wall to hold upthe earth mider an adjoining building which foots some dis.tance above the new foundations. Fig. 157 illustrates the case of a party wall…
