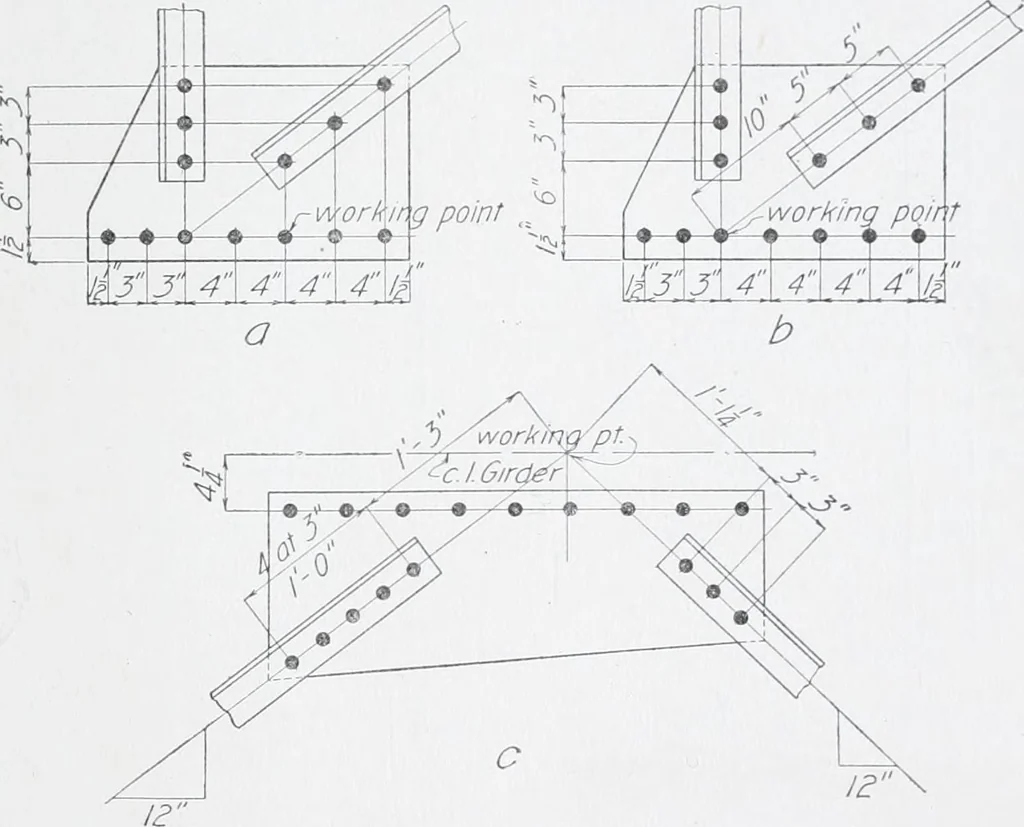

led from one edge (the working edge)and the working point. The various distances to the rivet holesare measured from these places of reference. The distance from thelast rivet hole to the far or side edges is not given. The plate ofcourse being originally laid out to a large scale—a layout—care… … Fig. 54. Methods of Detailing Diagonal Row of Rivets, (a) Poor, (b) Good, (c) ExampleWhere Working Point is Not on the Plate case of the |-inch rivet, these limits are 1| inches for the smallerand 2 inches for the greater. Specifications govern this distance bymaking it a function of the thickness…
