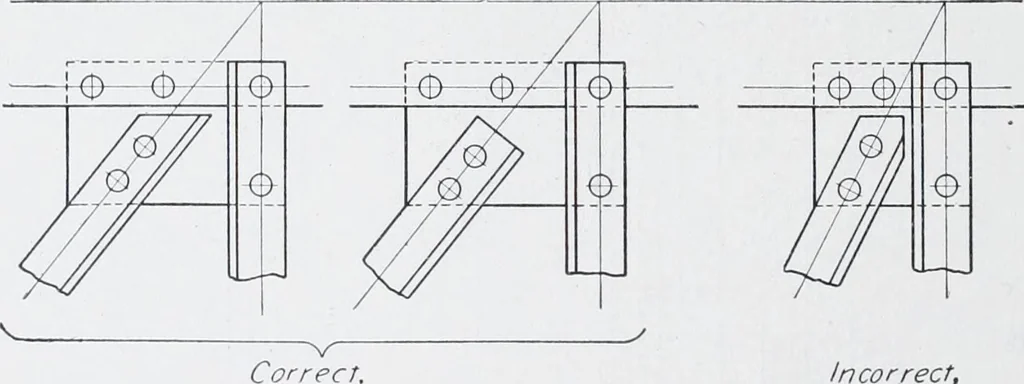

tstandingleg. (2) If spans are on a grade, unless otherwise specified, put the bevel in thebed plate or masonry plate and not in the base or sole plate, sometimescalled the bearing plate. (3) In short spans, 50 feet or less, put slotted holes for anchor bolts in bothends of the girder. This will… … one operation Incorrect,two operations Fig. 70. Method of Locating End Holes for Laterals and Diagonals so that They May beSheared by a Single Operation (5) The girder detailed is always the far girder and is looked at from theinside. (6) If a span has no lower lateral bracing, only sufficient of…
