Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 19

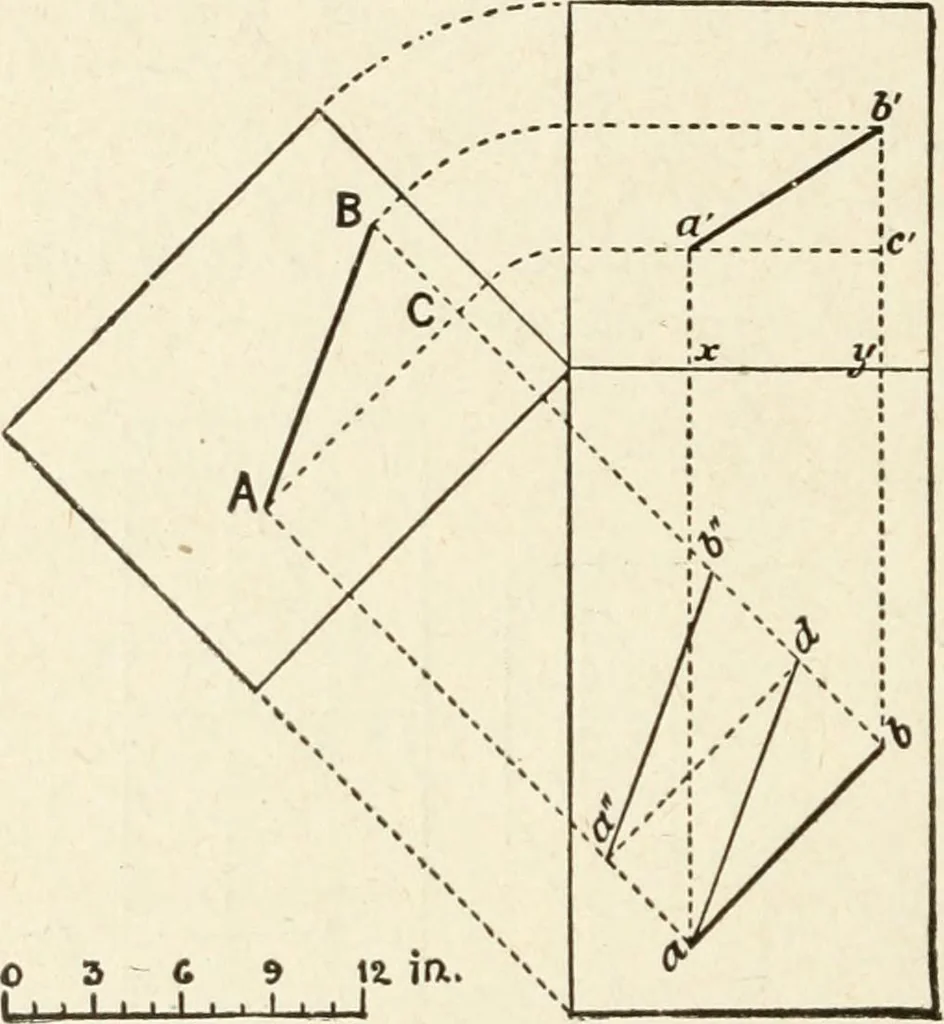

n, and gh itshorizontal projection or plan. By producing h g till itcuts C D at e, it will be found that the given line isinclined at an angle of 60° to the horizontal plane;its length, as measured by the scale along the vertical 16 MODERN CARPENTRY projection gh, is 8 inches; the height of G above… … Fig. 5. Let ab (Fig. 5) be the horizontal projection anda b the given vertical projection of the given line.Draw the projection A B on a plane parallel to a b inthe manner shown. From this projection the lengthof the given line will be found (by applying the scale)to be 10 inches. The height C B is…
Carpentry
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
