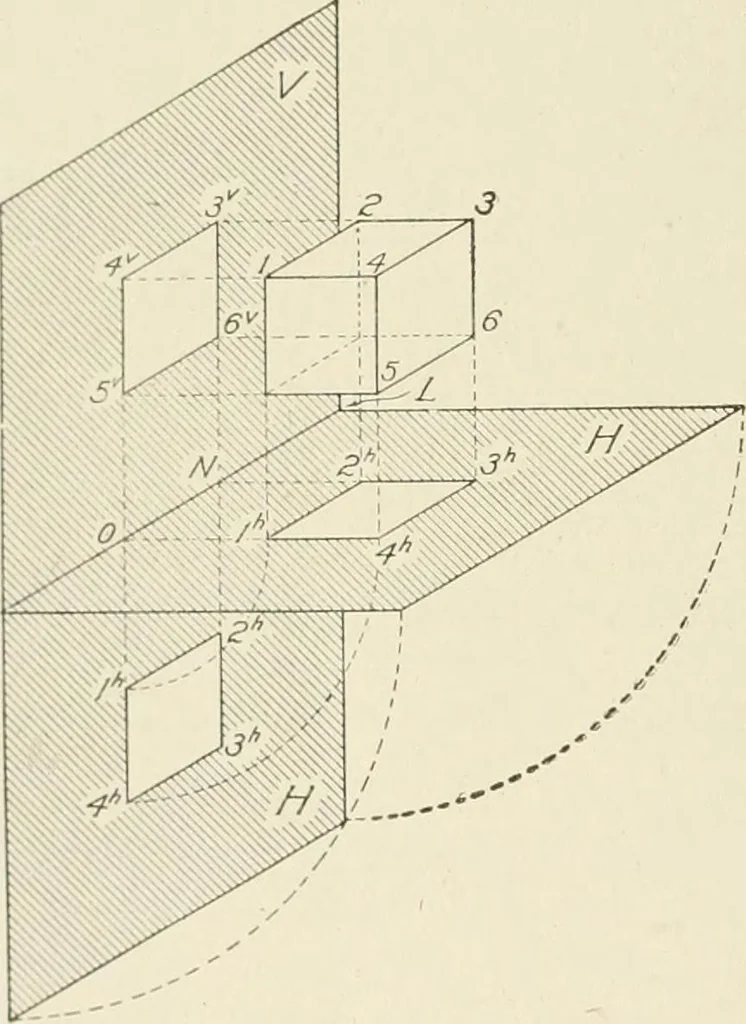

perpendicularto the V plane a similar square 3-4-5-6, Fig. 95, will be projected onthis plane as the elevation. In order that the projected views, orpn^joctions, Fig. 96, as they are better known, may be shown on oneplaiie or on a sheet of drawing paper, the plane H with the projec-tion upon it is… … 1/ -sz J / p y 6 ■3h M Fiff. 95. Object and Its Projections Fig. 96. Vertical andHorizontal Projections planes. Fig. 96 represents the actual projections, plan and eleva-tion, as the problem would be drawn. The projections of a pointa and line B drawn according to the first method are shown in Fig.…
