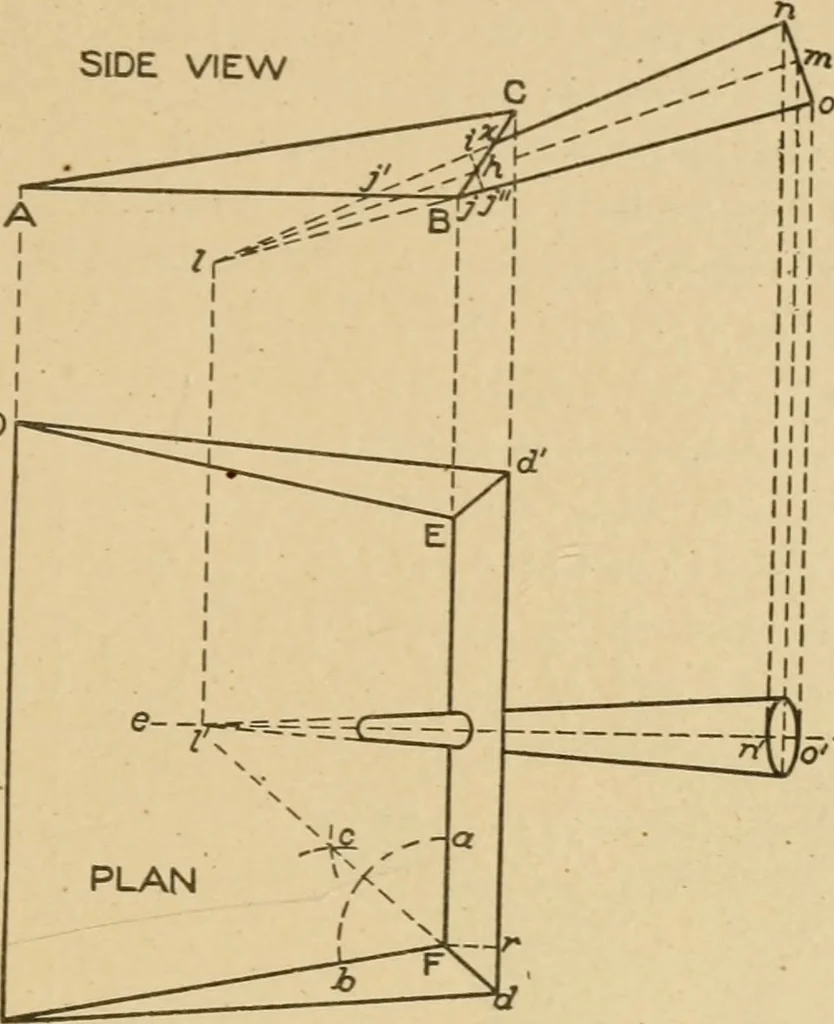

E^Z des-cribe the arc st.Then with td asradius and*as cen-ter, intersect thearc st at d. Drawa line from d toD. In similar man-ner obtain ^/G on Gthe opposite side,which will com-plete the patternfor the pan. Allowlaps for wiring andedorincr. The openingin the back of thepan to allow the- handle to… … Fig. 4S.
