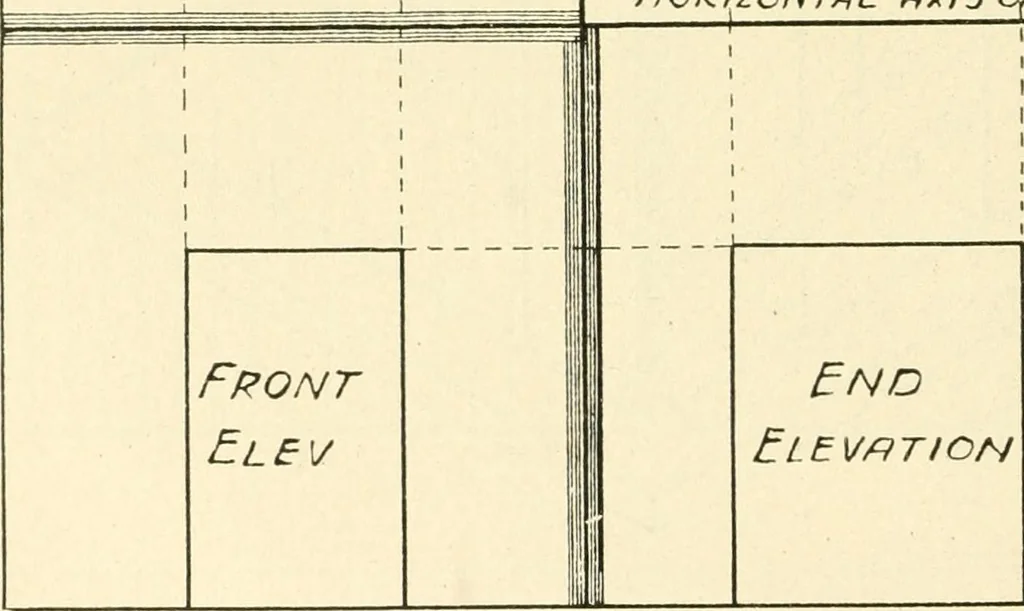

er with cloth hinges,letting them thus enclose the rectangular prism. 4. Look down from above at the top of the prism. With apiece of chalk trace the lines you see on the glass. 5. From directly in front trace a front view on the glass. 6. From a direct side study trace a side view. 7. With dotted… … -10 o •siK Horizontal #x/s Of FroXection EndElevation FIG. 158 To illustrate Lesson No. 2, Sections 9, 10, 11.— 80 — 9. We now have the horizontal axis of projection which isthe line extending through the hinge between the top and frontand continuing through the top of the other view. We alsohave…
