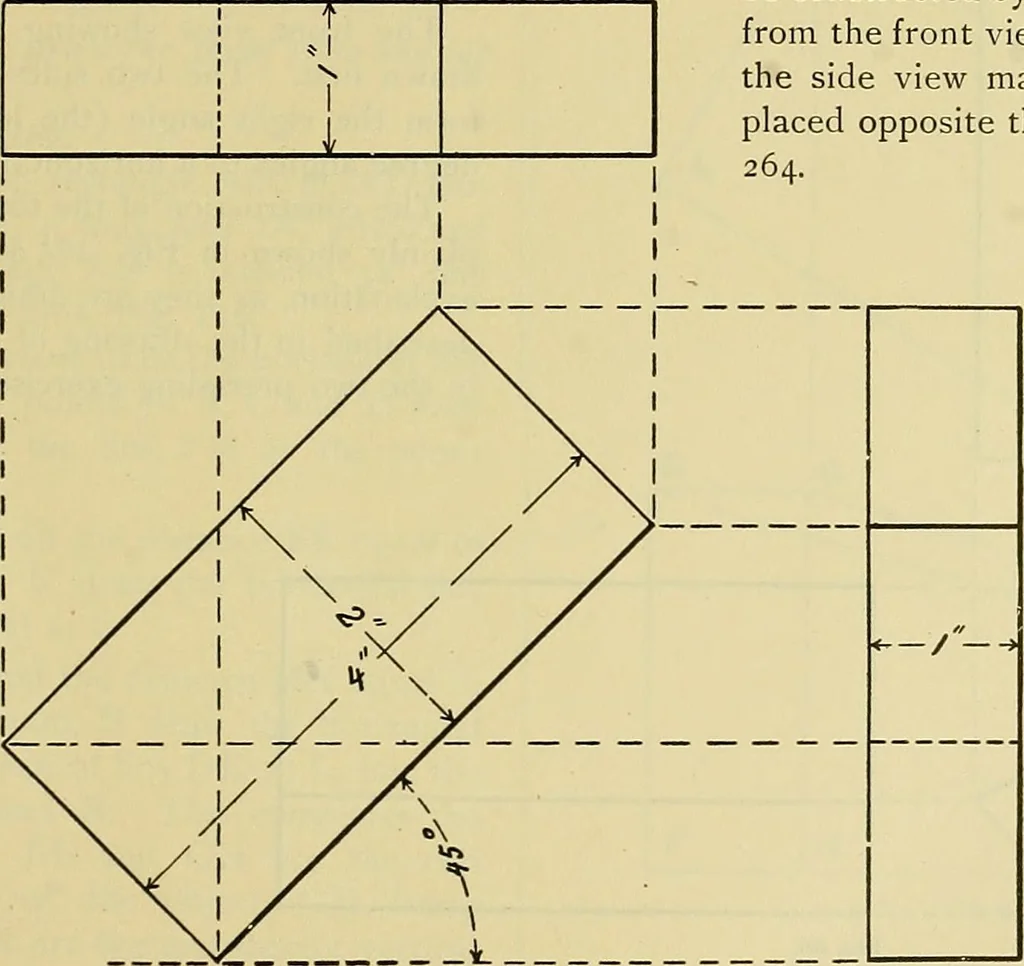

ned45 degrees to the paper and the front face, fx 2 re-mains vertical to the paper and par- • allel to the loweredge of the drazv-ing board. Fig.264. Draw the front view first; it is a rectangle 4. longand 2 wide, the long side of which forms an angleof 45 degrees with a horizontal line. The figure… … Fig. 264. 150 riOGERS DRAWING AND DESIGN. Draw the wedge shown in Fig. 26£, placed so thatthe sides of the square corner of it form angles of 4^degrees with the plane of the paper, with both tri-angular faces vertical to the paper and parallel tothe lower edge of the drawing board. The front view…
