Pomilio, Ottorino · New York, McGraw-Hill · leaf 300

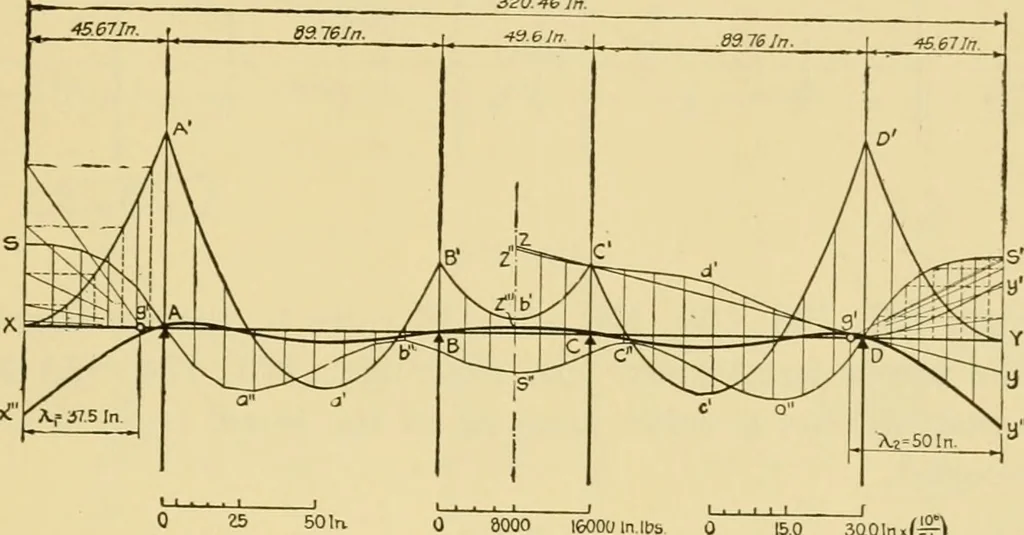

c statics, to find the diagram of theshearing stresses, and consequently the reactions on thesupports (Fig. 170). The scale of forces is obtained bymultiplying the basis H of the derivation, by the ratiobetween the scale of moments and that of the lengths. InFig. 170 the scale of forces has been… … 0 25 50Irv Scale ot Liinyths 8000 16000 inScale ot Moments Fig. 171. ) 15.0 3a01nn(^ Scale at Deflections In fact, let us remember that the analytic expression ofthe bending moment is given by Ms = E X I X and consequently y rifd-f M„ dx that is, by double integration of the diagram of M^ weobtain…
Airplanes
