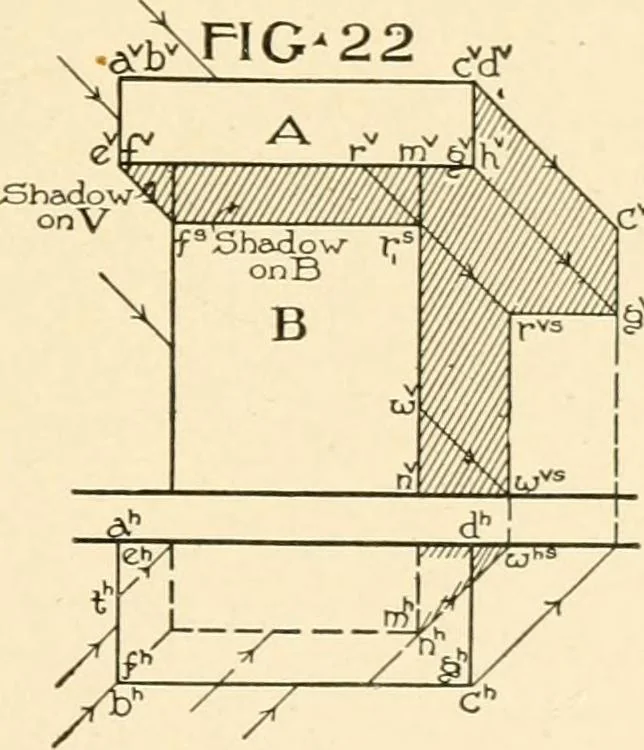

e shadow of the remainder, r^g, falls beyond theprism on the Y plane, and is evidently the line r^hfK Thusthe shadow of the shade line from e to g has been determined. The next portion of the shade line, ge, is a vertical line andwe have already obtained the shadow of the end g. Since it is… … on that plane. (^ 39) We have already found the shadow of the 185 16 SHADES AND SHADOWS other end c, at c^^ Therefore tZ^c^- is the shado^v of (?>; andcompletes the outline of the shadow of the plinth. It will be noted that d-a^ is a 45^ line, which Mould beexpected since the edge do is…
