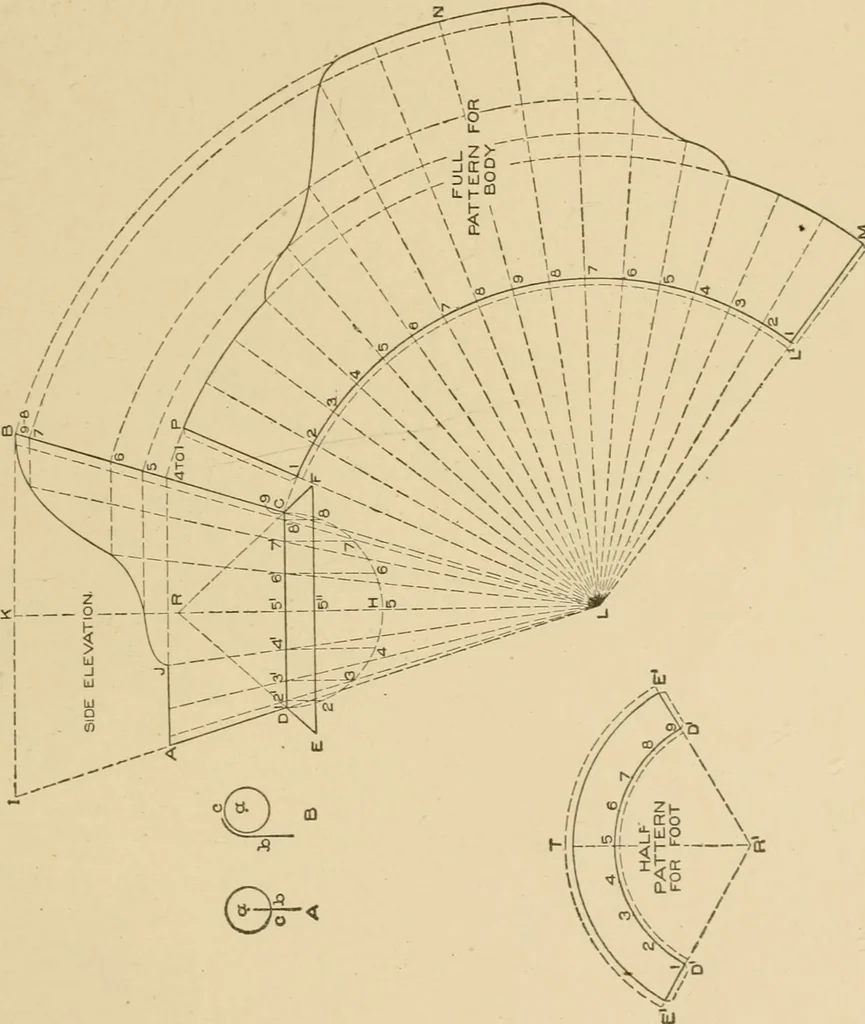

FRONT AND REAR VIEWS OF RESIDENCE Or MRS. H. M. COBB, MAGNOLIA DRIVE, CLEVELAND, OHIOWatterson & Schneider, Architects, Cleveland, Ohio. SHEET-METAL WORK 31 struck from L as center with radii equal to similarly numberedintersections on B C. Trace a line through points thus obtained,and Li M N P… … ©^< Pig. 25. The pattern for the foot is obtained by using as radii R D andR E, and striking the pattern using R^ as center, the half patternbeing shown by E^ T E^ B^ T>\ and the distance D^ D^ being equalto the stretchout of the half section D H O in side elevation. 91 32 SHEET-METAL WORK Tt…Architecture · Building · Carpentry
