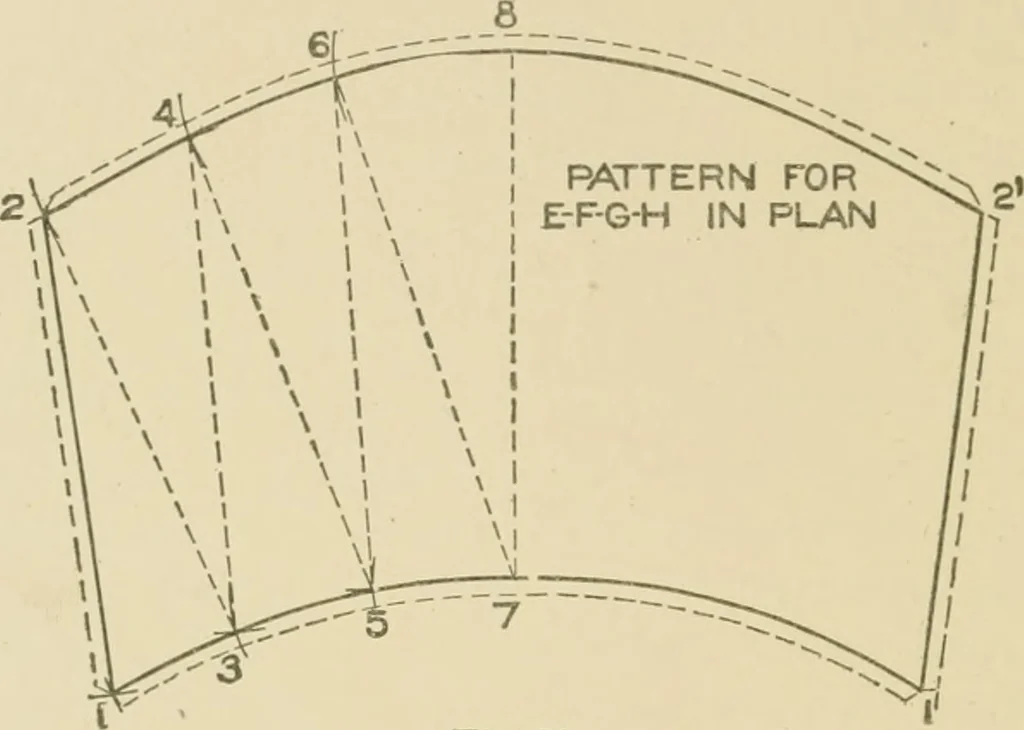

95 36 SHEET-METAL WORK by 2 V. Then will 2-8-2-l-7-l be the desired pattern, towhich laps must be allowed. For the pattern for the side of the bath draw any line 9-1 inFig. 30 equal to 9-1 in plan in Fig. 27. Now with a radius equal … Fig. 29. to 9-P in the pattern X and with 9 in Fig. 30 as a center, describethe arc 0, which intersect by an arc struck from 1 as center andwith l-0 in (A) in Fig. 27 as radius. Now taking a radius equalto 0^-2^ in (A) with 0 in Fig. 30 as center, describe the arc 2, which intersect by an arcstruck…
