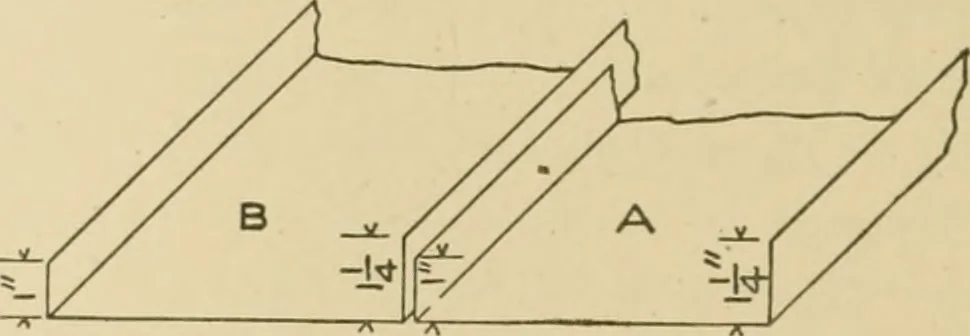

222, which also shows the full size for layingthe sheets given in Fig. 221. Thus it will be seen inFig. 222 that \ inch has been added over the measure-ments in Fig. 221, thus allowing edges. These cleats shown in Fig. 222 are made fromFig 222 scrap metal; they allow for the expansion and… … FiR. 221. i .J ^¥ -H WCLEAl 258 SHEET METAL WORK 179 gutter bein^ fastenetl in position by means of cleats under thelock B—the same as in flat seam roofing—the standing seam stripsare laid as follows: Take the strip C and lock it well into thelock B of the gutter A as shown, and place the cleat…
