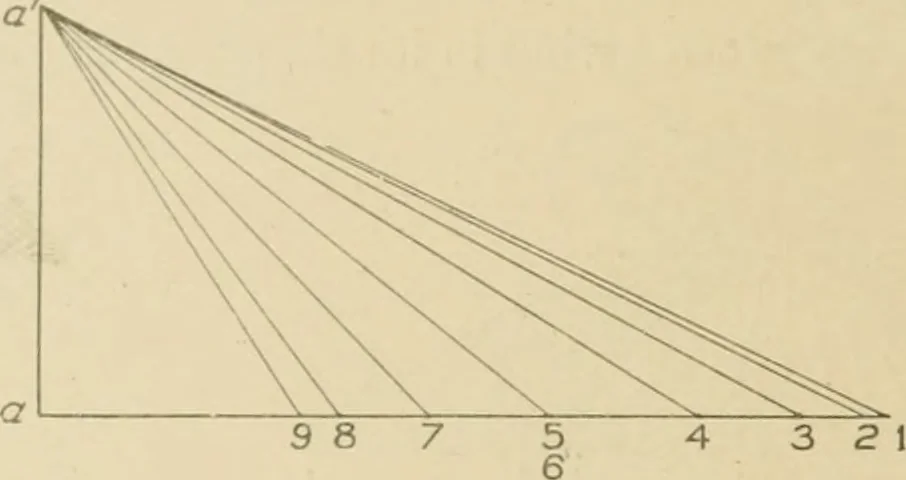

bers. Then using as radii the various 297 212 SHEET METAL WORK lengths a 1, a 2, a 3, etc., to a 9, and with any point, as a! in Fig.288 as center, describe the various arcs shown from 1 to 9. From anypoint on tlie arc 1 draw a line to a. Set the dividers equal to the spaces contained in thecurve 1… … Fig. 287.
