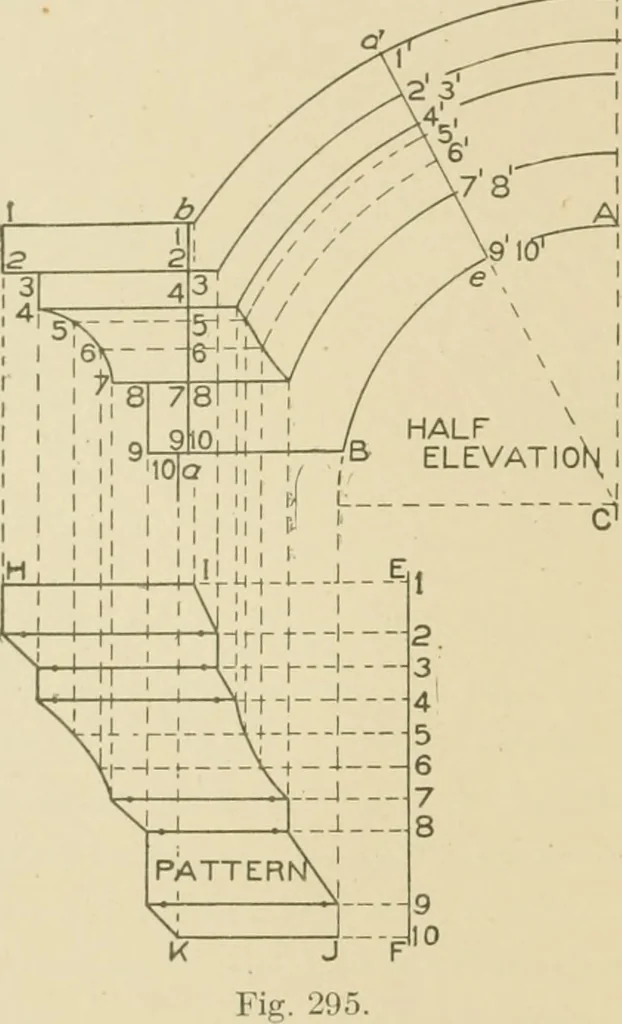

r thehorizontal moulding by drawing the stretchout line E F at right anglesto 9 B. On E F lay off the stretchout of the profile 1 10; andthrough the numbered points and at right angles to E F, draw hori-zontal lines, which intersect with lines drawn at right angles to 9 B from similarly numbered… … 2 1 1/ B Fig. 296. In Fig. 296 is shown a shaded view of a gable moulding intersect-ing a pilaster, the gable moulding B cutting against the vertical pilasterA, the joint-line being represented by ahc. To obtain this joint-line,without which the pattern for the gable moulding cannot be developed,an…
