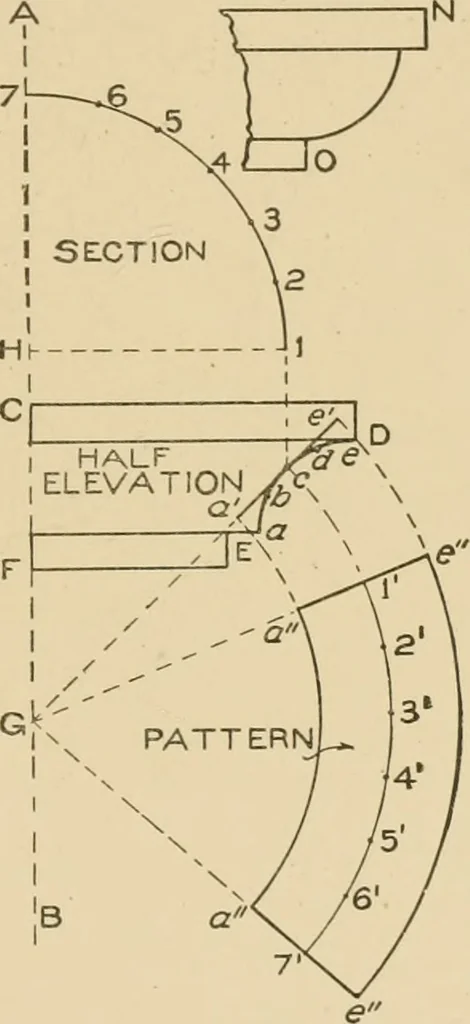

Fig. 340. Fig. 341. from r to 7; and draw a line from7 to G, intersecting the inner arcat E°. Then will E^ 1 7 E° be the quarter-pattern for the flare D Ein elevation. If the pattern is required in two halves, join two pieces;if required in one piece, join four pieces. In Fig. 341 is shown a curved…
