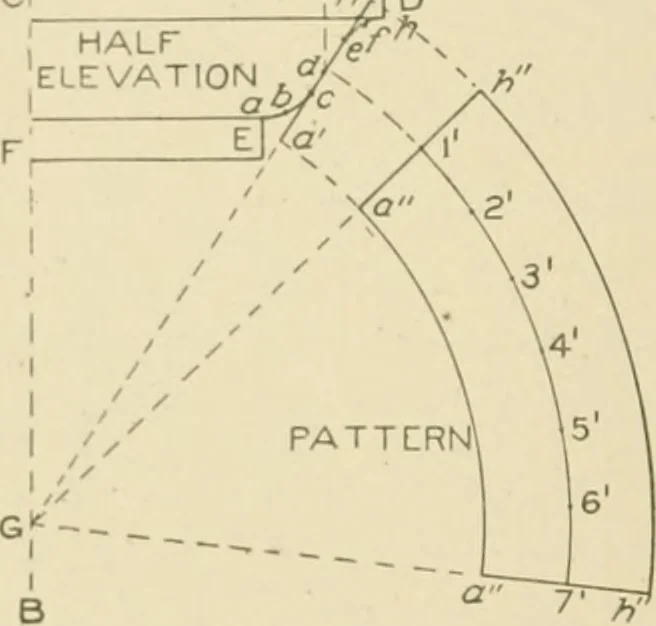

ine, extendingit upward and downward until it intersects the center lihe A B at G.Take the stretchouts from a to c and from e to h and place them re-spectively from c to a and from e to h on the line h G. Then, in work-ing the ogee, that portion of the flare from c to c remains stationary;the part… … Fig. .342. 338 SHEET METAL WORK 253 angles to A B, at 1. Using H as center and H 1 asradius, describethe quarter-section, and divide same into equal spaces, as shown.With G as center and with radii equal to G a, G d, and G h, describethe arcs a a, V 7, and /t If. From h draw a line to G.Starting at…
