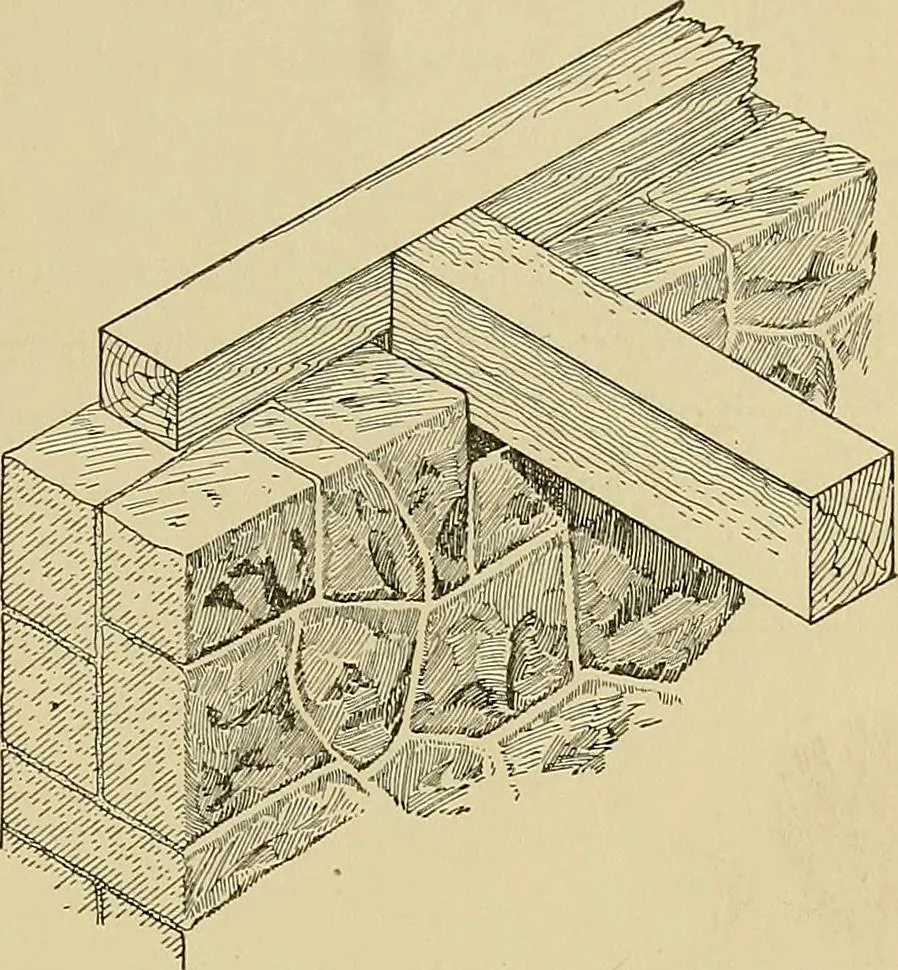

Fig. 139. Tenon-and-Tusk Joint betweenSill and Girder 108 CARPENTRY 97 … Fig. 140. Wall Cut Away to Allow Girder andSill to Join at Same Level tenon-and-tusk joint, as shown in Fig. 139, and the girder is gainedinto the sill, as shown in Fig. 137. Still another method incommon use is simply tosize down the joists on thegirder about 1 inch, as shownin Fig. 142. In this…
