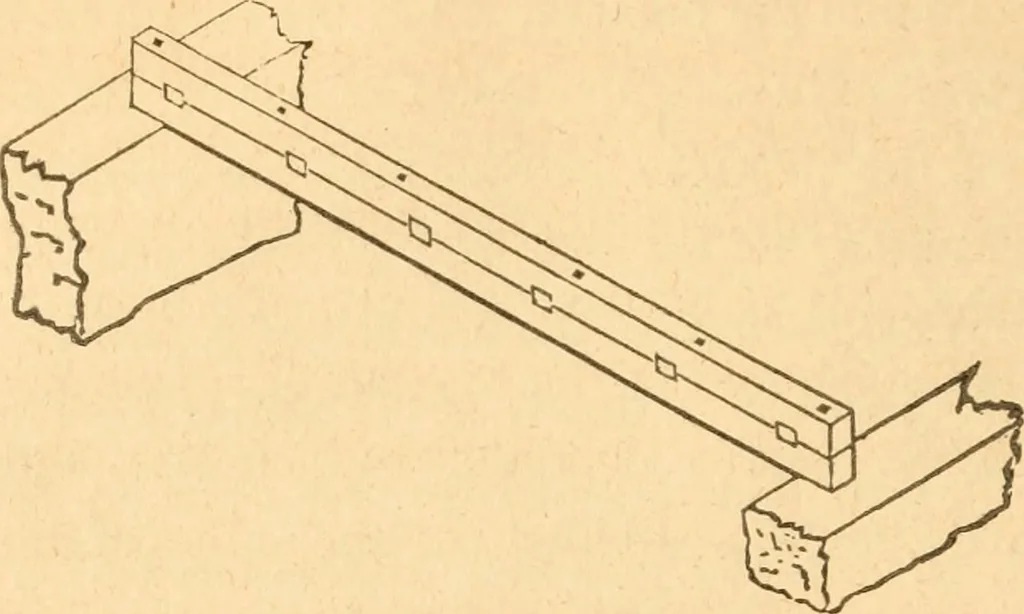

two pieces ofoak which are inclined towards each other, and which meet atthe centre of the length of the girder, like the rafters of a roof-truss, though nearly if not quite concealed within the girder.This, and many similar methods, though extensively practised,are generally worse than useless ;… … Fig. 205. its depth is required to be greater than any one piece of timberwill allow. Fig 205 shows a very simple yet scientific methodof doing this. The two pieces of which the girder is composedare bolted, or pinned, together, having keys inserted between toprevent the pieces from sliding. The…
