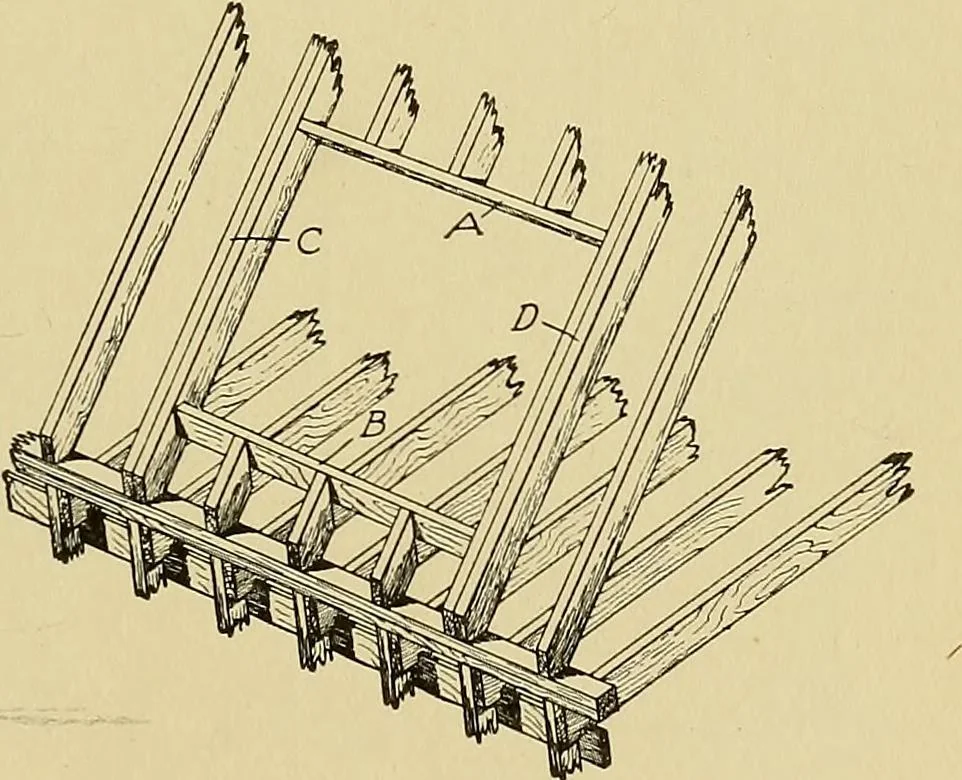

shown at the right-hand side of Fig. 191. Fig. 191 shows sections taken through two dormers of the typesmentioned above, parallel to the direction of the main rafters andat right angles to the main wall plate of the building. At the leftis a section taken through the type of dormer shown in Fig.… … 143 132 CARPENTRY tinue downward to the attic floor. This is shown at section D D.At E is a section of the trimmer rafter, C is the wall stud, G is theattic floor boarding, and iZ^ is a section of one of the attic floor joists.The studs C are in line with the studs forming the side walls of…
