Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 202

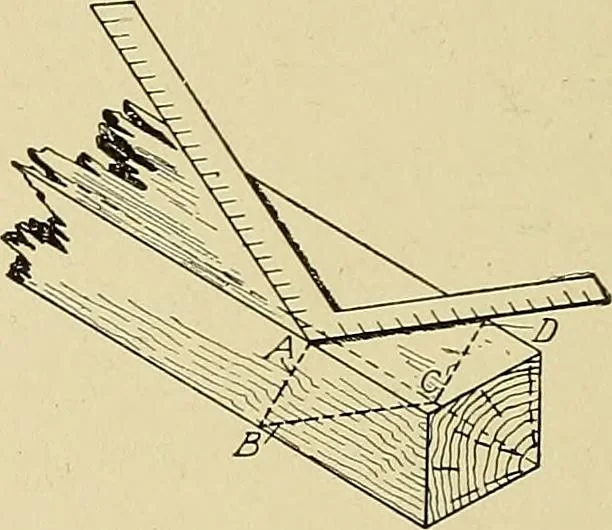

^r J\J\ // K 1 … Fig. 212. Battered Frame Detail Fig. 213. Method of Cutting Foot ofInclined Post by Steel Square the girts. If, however, the frame is to be covered in, the postmust be backed in order that it may be prepared to receive theboarding. The backing consists in cutting the post to such a shape thatwhen…
Architecture · Building
